Piranha HS NIR 8k, 34 kHz
Visible 영역은 물론 NIR 영역에서도 우월한 밝기 제공하는 TDI 카메라

Selectable TDI or Area Mode of operation

The Piranha HS provides you with the flexibility to choose how you want to image. The area mode of operation facilitates camera set-up by allowing you to focus on a larger imaging area. You can also use area mode as your regular mode of operation. Other programmable features include number of taps, bit depth, flat field correction, direction control, stage selectability, and gain and offset control.

Time Delay Integration

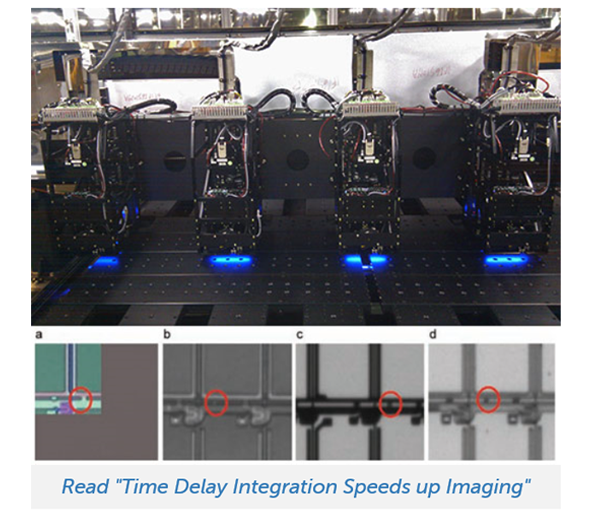

Time delay integration speeds up imaging. This technology has become the standard in the automated inspection of flat panel displays.

주요 사양

Family Piranha HS
Partnumber HN-80-08K40
Number of Pixels 8192 pixels
Number of Lines 256
Line Rate 34 kHz
Pixel Size 7 µm
Interface Camera Link_Full
Chroma Mono
Responsivity 419
Dynamic Range 62 dB
Sensor size(Image Circle) 57.34 mm
Sensor type CCD
Mount M72 x 0.75
Size 150 x 80 x 65 mm
Maker Teledyne Dalsa
