Rodagon WA 4/60
동일한 이미지 필드에서 확장된 시야각 및 짧은 초점 거리를 가진 고성능 렌즈

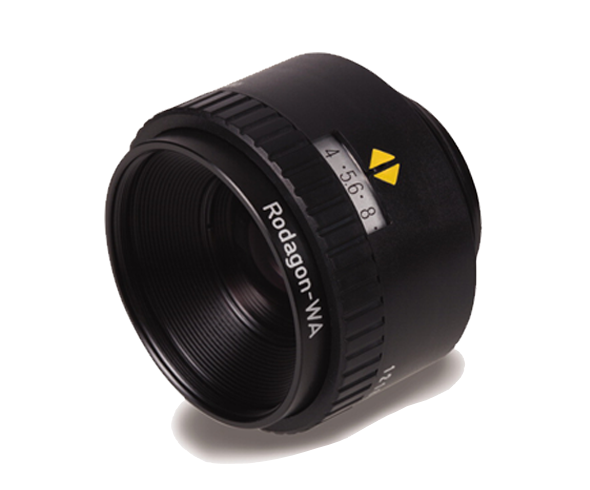

Rodagon-WA

The Linos measuring lenses developed by Qioptiq feature the highest resolution, excellent contrast, minimum distortion and color neutrality. They sharply reproduce images all the way to the very edges of the object.

High-performance lens with extended-field viewing angle and a large resulting image circle.

Key features

- Suitable for line-scan cameras and large imaging sensors

- Large image circle up to 105 mm

- High numerical aperture

- Adapter available for all common camera interfaces

- Magnification range: - 0.03 ... -0.5

- Spectral range: 400-750 nm

- Iris diaphragm: manual, click-stop

- Mount: M39x1/26" (Leica)

- Filter thread: M40.5x0.5

광학계산기

Large format 렌즈의 배율, F/# 입력을 통해

유용한 정보를 얻을 수 있습니다.



1) Back Focal Length

2) Working Distance

3) Total Track

4) DOF

주요 사양

Family Rodagon
Partnumber 0701-276-000-40
Magnification range 0.25 ~ 0.066 x
Magnification 0.125 x
Image circle 82 mm
Focal length 61.4 mm
F/#
Wavelength Visible
Type Fixed focal length
Mount M39
Maker Qioptiq

다운로드

구분 파일명 다운로드
카달로그 2021 앤비젼 카달로그 다운로드
데이터시트 Rodagon WA 60 Datasheet 다운로드

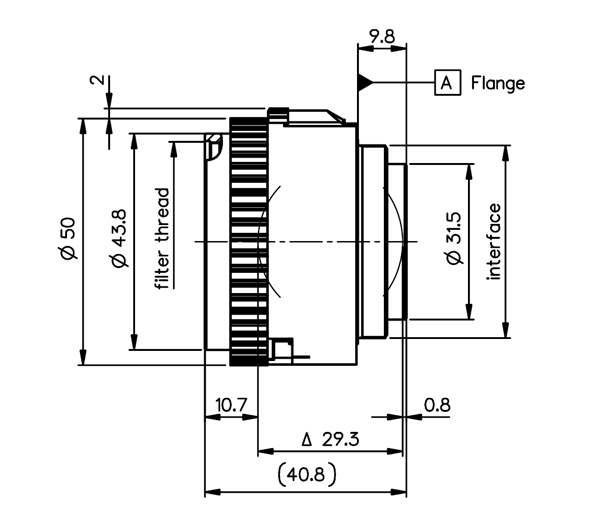

3D 도면 Rodagon WA 60 Lens 3D model (STEP) 다운로드
