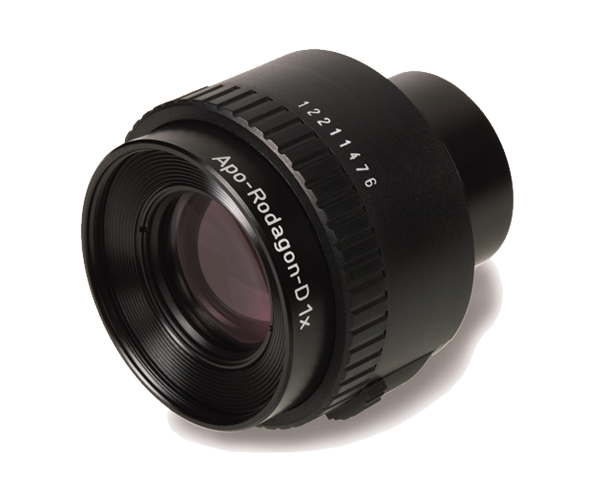

Apo-Rodagon D2X 4.5/75 0.5x
line scan 카메라에 특화된 높의 가성비의 저가형 렌즈

High-Performance Lenses for Large Imaging Sensors

The high resolution of the Apo-Rodagon-D lenses makes them an optimum solution for cameras with a pixel size down to 7 μm. The high resolution is accompanied by ultra-low distortions and negligible color fringing. The lenses are optimized for a magnification range from 1:2 to 2:1.

The 6-element, apochromatically corrected lenses feature high contrast and sharpness right up to the picture corners with practically no color fringes.

Key features

- Specially designed for scanning applications

   and large imaging sensors

- Optimized for 1:2 to 2:1 imaging

- Large image circle up to 102 mm

- Focal length: 75, 120 mm

- Magnification range: -0.33 ... -3.0

- Spectral range: 400-750 nm

- Iris diaphragm: manual, click-stop

  or continuous with set screw

- Mount: M39x1/26" (Leica)

- Filter thread: M40.5x0.5

- Wide range of mechanical accessories


Large format 렌즈의 배율, F/# 입력을 통해

유용한 정보를 얻을 수 있습니다.


1) Back Focal Length

2) Working Distance

3) Total Track

4) DOF

주요 사양

Family Apo-Rodagon
Partnumber 0703-028-000-21
Magnification range 0.4 ~ 0.8 x
Magnification 0.5 x
Image circle 80 mm
Focal length 74.8 mm
F/# 4.5
Wavelength Visible
Type Fixed focal length
Mount M39
Maker Qioptiq


구분 파일명 다운로드
카달로그 2022 앤비젼 솔루션 가이드(전제품 카달로그) 다운로드
카달로그 Apo-Rodagon / Rodagon / Rogonar-s Brochure (한글) 다운로드
데이터시트 Apo Rodagon D 2x Datasheet 다운로드
3D 도면 Apo Rodagon D 2x Lens 3D model (STEP) 다운로드
