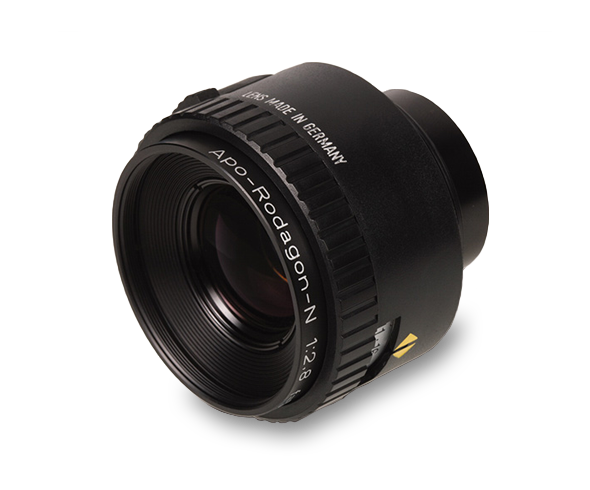

Apo-Rodagon N 4/90
다양한 배율 범위에서 가장 높은 요구 사항을 충족하도록 설계된 색수차 및 구면 수차를 없앤 렌즈

Apo- Rodagon-N

The Linos measuring lenses developed by Qioptiq feature the highest resolution, excellent contrast, minimum distortion and color neutrality.

Lenses produce crisp, sharp images to the extreme edges of the object.

Apochromatically corrected lens designed to meet the highest requirements in an especially broad magnification range.

Key features

- Suitable for line-scan cameras and large imaging sensors

- Large image circle up to 100 mm

- High numerical aperture

- Adapter available for all common camera inter faces

- Focal length: 50 ... 105 mm

- Magnification range: -0.05 ... -0.5

- Spectral range: 400-750 nm

- Iris diaphragm: manual, click-stop or continuous with set screw

- Mount: M39x1/26" (Leica)

- Filter thread: M40.5x0.5

- Wide range of mechanical accessories

광학계산기

Large format 렌즈의 배율, F/# 입력을 통해

유용한 정보를 얻을 수 있습니다.



1) Back Focal Length

2) Working Distance

3) Total Track

4) DOF

주요 사양

Family Apo-Rodagon N
Partnumber 0703-094-000-20
Magnification range 0.5 ~ 0.066 x
Magnification 0.1 x
Image circle 90 mm
Focal length 90.1 mm
F/#
Wavelength Visible
Type Fixed focal length
Mount M39
Maker Qioptiq

다운로드

구분 파일명 다운로드
카달로그 2021 앤비젼 카달로그 다운로드
데이터시트 Apo-Rodagon N 90 Datasheet 다운로드

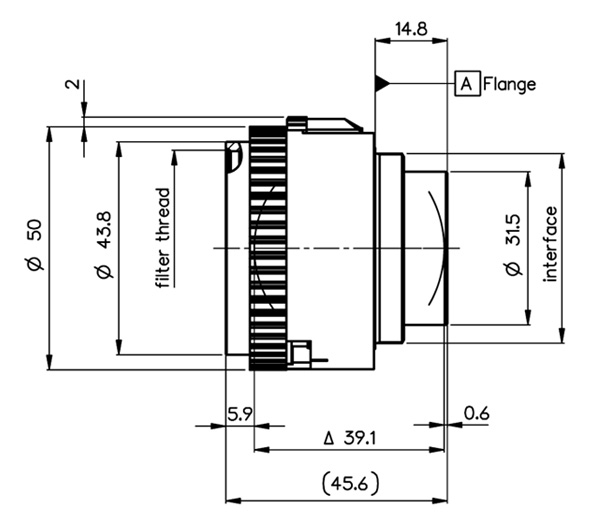

3D 도면 Apo-Rodagon N 90 Lens 3D model (STEP) 다운로드
