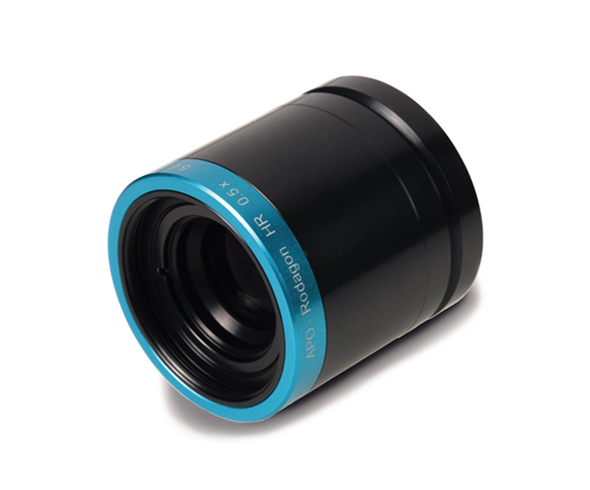

- Apo-Rodagon HR 5.6/75 0.5x
- 12 k / 5 μm 이미지 센서에 적합한 고해상도 렌즈
Apo-Rodagon HR
High-Resolution Lenses for Line- and Area-Scan ApplicationsThe new Apo-Rodagon-HR is designed to close the gap between the high-resolution lenses of the inspec.x L Series, and the Apo-Rodagon-D lenses, both in terms of imaging quality and price.
Key features
- Compact and robust mechanics
- High performance / price value
- Ideal for 12 k / 5 μm sensors
- Magnification range: -0.35 ... -0.65
- Camera mount: V-Groove
- Filter thread: M37x0.75
광학계산기
Large format 렌즈의 배율, F/# 입력을 통해
유용한 정보를 얻을 수 있습니다.
1) Back Focal Length
2) Working Distance
3) Total Track
4) DOF
주요 사양
| Family | Apo-Rodagon HR |
|---|---|
| Partnumber | 0703-109-000-20 |
| Magnification range | 0.35 ~ 0.65 x |
| Magnification | 0.5 x |
| Image circle | 62 mm |
| Focal length | 76.9 mm |
| F/# | 5.6 |
| Wavelength | 400 ~ 750 |
| Type | Fixed focal length |
| Mount | V46 |
| Maker | Excelitas |
다운로드
| 구분 | 파일명 | 다운로드 |
|---|---|---|
| 카달로그 | [2025년] 앤비젼 전제품 카달로그 |  |
| 카달로그 | Apo-Rodagon / Rodagon / Rogonar-s Brochure (한글) | |
| 카달로그 | Apo-Rodagon/Rodagon Brochure ncluding mechanical accessoiries (eng) | |
| 데이터시트 | Apo Rodagon HR 0.5x Datasheet | |
| 3D 도면 | Apo Rodagon HR 0.5x Lens 3D model (STEP) | |
