- Rogonar-S 4.5/90
- 좋은 이미징 성능 및 우수한 가격대성능비를 지닌 저가 렌즈

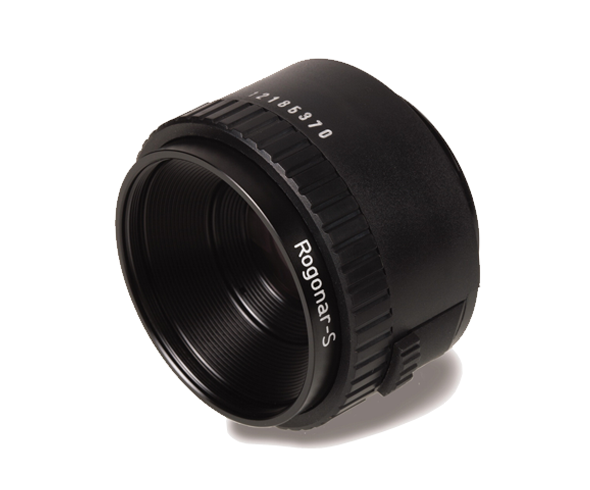

Rogonar-S
The Linos measuring lenses developed by Qioptiq feature the highest resolution, excellent contrast, minimum distortion and color neutrality. They sharply reproduce images all the way to the very edges of the object.Inexpensive lens with good imaging performance. Optimal price / performance ratio
Key features
- Suitable for line-scan cameras and large ima ging sensors
- Large image circle up to 82 mm
- High numerical aperture
- dapter available for all common camera interfaces
- Focal length: 50 ... 90 mm
- Magnification range: -0.08 ... -0.5
- Spectral range: 400-750 nm
- Iris diaphragm: manual, click-stop
- Mount: M39x1/26" (Leica)
- Filter thread: M40.5x0.5
광학계산기
Large format 렌즈의 배율, F/# 입력을 통해
유용한 정보를 얻을 수 있습니다.
1) Back Focal Length
2) Working Distance
3) Total Track
4) DOF
주요 사양
| Family | Rogonar-S |
|---|---|
| Partnumber | 0801-398-000-41 |
| Magnification range | 0.125 ~ 0.5 x |
| Magnification | 0.25 x |
| Image circle | 84 mm |
| Focal length | 90.1 mm |
| F/# | 4.5 |
| Wavelength | 400 ~ 750 |
| Type | Fixed focal length |
| Mount | M39 |
| Maker | Excelitas |
다운로드
| 구분 | 파일명 | 다운로드 |
|---|---|---|
| 카달로그 | [2025년] 앤비젼 전제품 카달로그 |  |
| 카달로그 | Apo-Rodagon / Rodagon / Rogonar-s Brochure (한글) | |
| 데이터시트 | Rogonar-S 90 Datasheet | |
| 3D 도면 | Rogonar-S 90 Lens 3D model (STEP) | |
