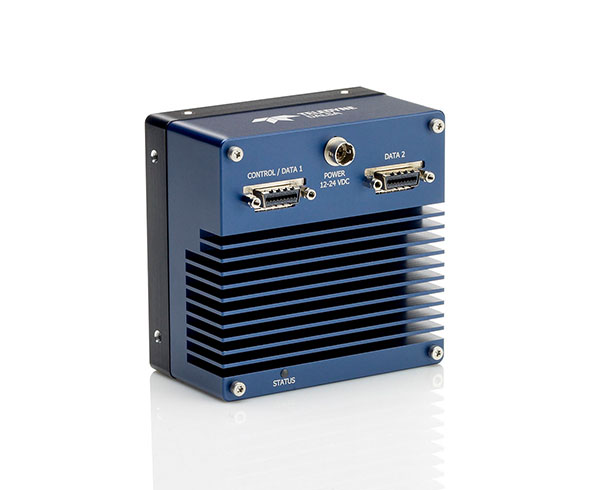

Piranha XL Color 16k, 40 kHz
높은 SNR과 넓은 다이내믹 레인지의 이미지를 빠르게 획득하는 멀티라인 CMOS Color TDI

Piranha™ XL: Multi-line CMOS TDI delivers breakthrough performance

Teledyne DALSA presents our latest multi-line CMOS camera, delivering unprecedented speed and responsivity with low noise. Exposure control allows for seamless variable speed imaging down to stopped conditions on select models.

Delivering unprecedented speed and responsivity with low noise

The camera uses the Camera Link HS interface based on Teledyne DALSA's field-proven HS Link technology. It delivers very high data throughput with long transmission distances and cable flexibility. The camera, combined with the XTIUM Camera Link HS frame grabber, offers a complete solution for the next generation Automatic Optical Inspection.

How Digital Summing Boosts SNR and how that helps you

Mulitline CMOS combines mulitple low-noise exposures to achieve high sensitivity AND high full-well, resulting in an incredible signal-to-noise ratio and better images

Gain boosts signal but also increases noise by the same factor; signal is limited by full-well capacity which can reduce SNR

Digital summing gathers more photons (signal) and only increases noise by a factor of √# of stages. More signal, less noise, no full-well limit.

주요 사양

Family Piranha XL
Partnumber PX-HC-16K04T
Number of Pixels 16352 pixels
Number of Lines 12
Line Rate 40 kHz
Pixel Size 5 µm
Interface Camera Link HS
Chroma Color
Responsivity 21(B)22(G)25(R)
Dynamic Range 55.5 dB
Sensor size(Image Circle) 81.76 mm
Sensor type CMOS
Mount M90 x 1
Size 97 x 97 x 85.2 mm
Maker Teledyne Dalsa

다운로드

구분 파일명 다운로드
카달로그 앤비젼 2020 전제품 카달로그 다운로드
데이터시트 Piranha XL Color 16K Datasheet 다운로드
매뉴얼 Piranha XL Color Camera User Manual Teledyne DALSA 다운로드
3D 도면 Piranha XL Color 16K 40 kHz 3D Model (STEP) 다운로드
