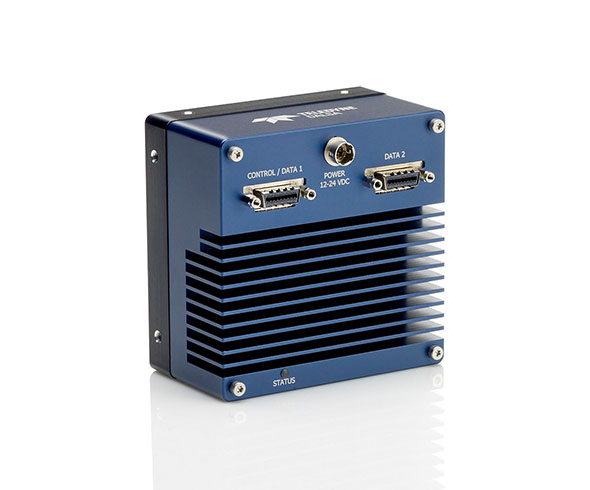

- Piranha XL XDR 16k, 125 kHz
- 높은 SNR과 넓은 다이내믹 레인지의 이미지를 빠르게 획득하는 멀티라인 CMOS TDI
Piranha™ XL: Multi-line CMOS TDI delivers breakthrough performance
Teledyne DALSA presents our latest multi-line CMOS camera, delivering unprecedented speed and responsivity with low noise. Exposure control allows for seamless variable speed imaging down to stopped conditions on select models.
Delivering unprecedented speed and responsivity with low noise
The camera uses the Camera Link HS interface based on Teledyne DALSA's field-proven HS Link technology. It delivers very high data throughput with long transmission distances and cable flexibility. The camera, combined with the XTIUM Camera Link HS frame grabber, offers a complete solution for the next generation Automatic Optical Inspection.
How Digital Summing Boosts SNR and how that helps you
Mulitline CMOS combines mulitple low-noise exposures to achieve high sensitivity AND high full-well, resulting in an incredible signal-to-noise ratio and better images
Gain boosts signal but also increases noise by the same factor; signal is limited by full-well capacity which can reduce SNR
Digital summing gathers more photons (signal) and only increases noise by a factor of √# of stages. More signal, less noise, no full-well limit.
Gain boosts signal but also increases noise by the same factor; signal is limited by full-well capacity which can reduce SNR
Digital summing gathers more photons (signal) and only increases noise by a factor of √# of stages. More signal, less noise, no full-well limit.
주요 사양
| Family | Piranha XL |
|---|---|
| Partnumber | PX-HM-16K12X-00-R |
| Number of Pixels | 16352 pixels |
| Number of Lines | 12 |
| Line Rate | 125 kHz |
| Pixel Size | 5 µm |
| Interface | CLHS |
| Spectrum | Mono |
| Responsivity | 75 DN/nJ/cm² |
| Dynamic Range | 75 dB |
| Sensor size(Image Circle) | 81.76 mm |
| Sensor type | CMOS |
| Mount | M90 x 1 |
| Size | 97 x 97 x 61 mm |
| Maker | Teledyne Dalsa |
다운로드
| 구분 | 파일명 | 다운로드 |
|---|---|---|
| 카달로그 | [2025년] 앤비젼 전제품 카달로그 |  |
| 데이터시트 | Piranha XL XDR 16k Datasheet (한글) | |
| 매뉴얼 | Piranha XL 16k XDR Manual(한글) | |
| 3D 도면 | Piranha XL XDR Mono 3D Model | |
| 3D 도면 | Piranha XL 97mm 3D MODEL (STEP) | |
| 3D 도면 | Piranha XL 100mm 3D MODEL (STEP) | |
