- Piranha XL 16k, 60 kHz
- 혁신적인 성능을 제공하는 멀티 라인 CMOS TDI 솔루션
안내: 본 제품은 단종되었습니다.
최대한 A/S 가능일까지 수리 서비스 예정이나, warranty 기간내 수리 불가시 credit 후 고객동의에 따라 자체 폐기될 예정입니다.
회수 요청 시 수리되지 않은 상태로 반환되며 credit 발행은 되지 않을 예정입니다. 자세한 사항은 담당 영업사원에게 문의 바랍니다.

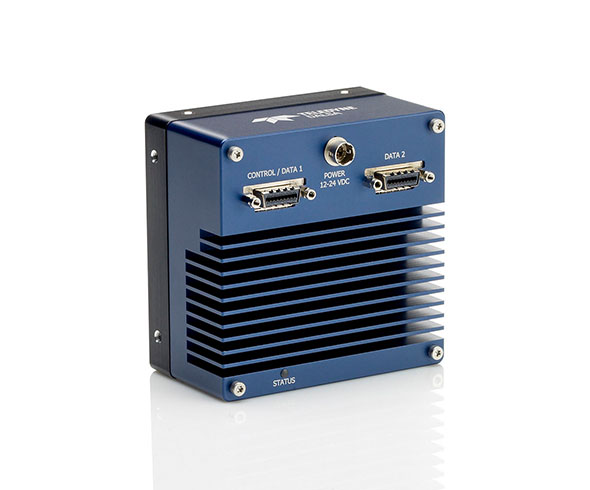

Piranha™ XL: Multi-line CMOS TDI delivers breakthrough performance
Teledyne DALSA presents our latest multi-line CMOS camera, delivering unprecedented speed and responsivity with low noise. Exposure control allows for seamless variable speed imaging down to stopped conditions on select models.
Delivering unprecedented speed and responsivity with low noise
The camera uses the Camera Link HS interface based on Teledyne DALSA's field-proven HS Link technology. It delivers very high data throughput with long transmission distances and cable flexibility. The camera, combined with the XTIUM Camera Link HS frame grabber, offers a complete solution for the next generation Automatic Optical Inspection.
How Digital Summing Boosts SNR and how that helps you
Mulitline CMOS combines mulitple low-noise exposures to achieve high sensitivity AND high full-well, resulting in an incredible signal-to-noise ratio and better images
Gain boosts signal but also increases noise by the same factor; signal is limited by full-well capacity which can reduce SNR
Digital summing gathers more photons (signal) and only increases noise by a factor of √# of stages. More signal, less noise, no full-well limit.
Gain boosts signal but also increases noise by the same factor; signal is limited by full-well capacity which can reduce SNR
Digital summing gathers more photons (signal) and only increases noise by a factor of √# of stages. More signal, less noise, no full-well limit.
주요 사양
| Family | Piranha XL |
|---|---|
| Partnumber | PX-HM-16K06B-00-R |
| Number of Pixels | 16352 pixels |
| Number of Lines | 12 |
| Line Rate | 60 kHz |
| Pixel Size | 5 µm |
| Interface | CLHS |
| Spectrum | Mono |
| Responsivity | 138 DN/nJ/cm² |
| Dynamic Range | 56 dB |
| Sensor size(Image Circle) | 81.76 mm |
| Sensor type | CMOS |
| Mount | M90 x 1 |
| Size | 97 x 97 x 61 mm |
| Maker | Teledyne Dalsa |
다운로드
| 구분 | 파일명 | 다운로드 |
|---|---|---|
| 카달로그 | [2025년] 앤비젼 전제품 카달로그 |  |
| 데이터시트 | Piranha XL XDR datasheet Datasheet | |
| 매뉴얼 | Piranha XL XDR Manual | |
| 3D 도면 | PIRANHA XL 97MM Camera 3D MODEL (STEP) | |
