- enAF 609fps 4x

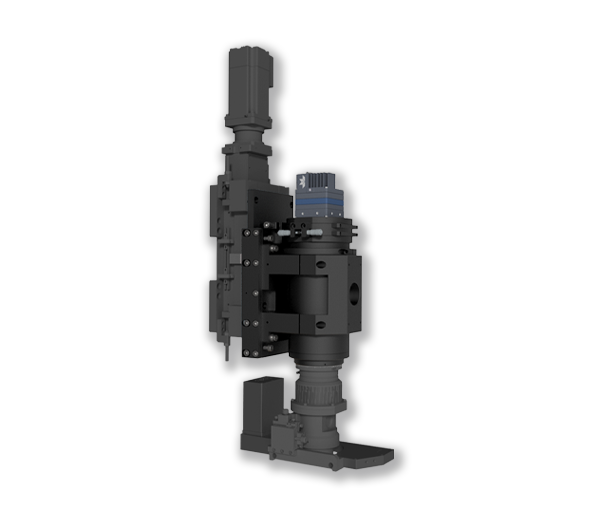

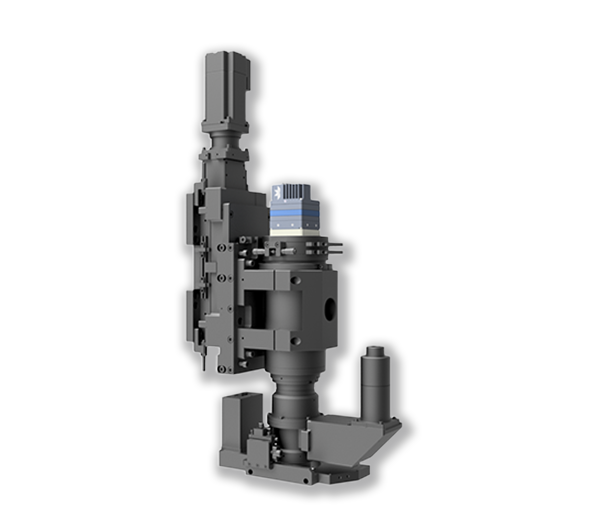

- 400kHz 4x용 앤비젼 개발 자동초점모듈
.
주요 사양
| Family | enAF 400kHz |
|---|---|
| Partnumber | EO-IM-AP2D400-003 |
| Sample Speed | 400 mm/s |
| Max Tracking Error | 2 µm |
| Min.DOF | ±8.0 µm |
| Magnification | 4.0 x |
| Focusing Range | 40 mm |
| PC Interface | Ethernet |
| Slope Condition | 50µm/50mm |
| Motion | Single Motion |
| 카메라 종류 | Area scan |
| 앤비젼 적용 카메라 | Falcon4 11M Mono 609fps |
| 앤비젼 적용 렌즈 | APO Diamond 4.0x |
