- Linea SWIR 1K, GigE
- SWIR 파장을 이용한 새로운 고속 & 고해상도 솔루션
Cutting-edge InGaAs Sensor

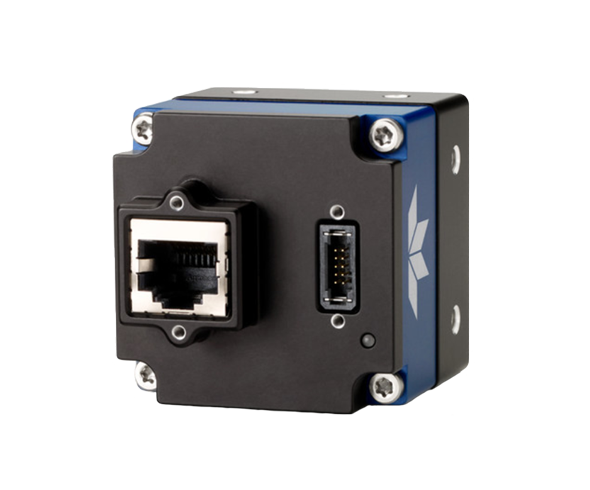

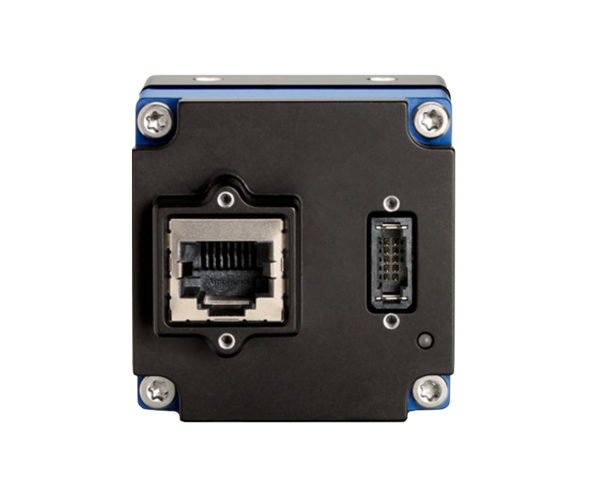

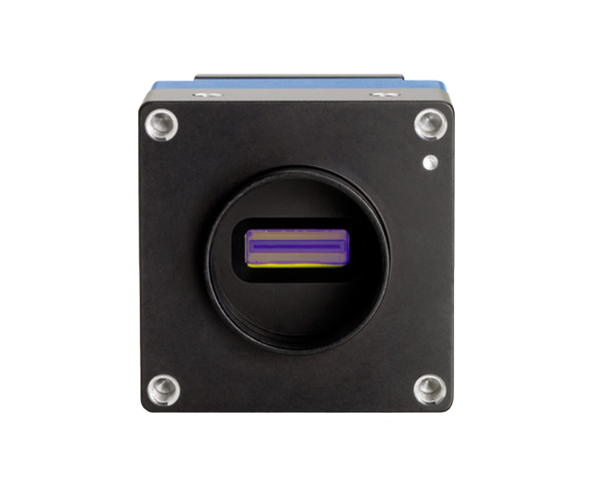

Teledyne DALSA’s short-wave infrared (SWIR) GigE line scan camera features a cutting-edge InGaAs sensor in a compact package for a wide variety of machine vision applications.
This high speed, high resolution camera is the first product in DALSA’s SWIR family. The uncooled sensor features 40 kHz line rate with horizontal resolution of 1024 pixels on a 12.5 µm pitch, delivering great responsivity that can be further improved through pixel binning, which gives customers the option to bin to 512 pixel resolution with 25 µm pixels.
This high speed, high resolution camera is the first product in DALSA’s SWIR family. The uncooled sensor features 40 kHz line rate with horizontal resolution of 1024 pixels on a 12.5 µm pitch, delivering great responsivity that can be further improved through pixel binning, which gives customers the option to bin to 512 pixel resolution with 25 µm pixels.
LINEA SWIR SEES RIGHT THROUGH SILICON to image the target on the back of the wafer
Food Sorting Application. Linea SWIR enables more efficient detection
Detection Capabilities
Benefits
- Moisture Content
- Bruising
- Foreign Objects
Benefits
- Increase Yield
- Reduce Waste
- Improve Quality
주요 사양
| Family | Linea SWIR |
|---|---|
| Partnumber | SL-GA-01K04A-00-R |
| Number of Pixels | 1024 pixel |
| Number of Lines | 1 |
| Line Rate | 40 kHz |
| Pixel Size | 12.5 μm |
| Interface | GigE |
| Spectrum | SWIR |
| Responsivity | |
| Dynamic Range | |
| Sensor size(Image Circle) | 12.8 mm |
| Sensor type | InGaAS |
| Mount | C |
| Size | 46 x 46 x 55 mm |
| Maker | Teledyne Dalsa |
다운로드
| 구분 | 파일명 | 다운로드 |
|---|---|---|
| 카달로그 | [2025년] 앤비젼 전제품 카달로그 |  |
| 데이터시트 | Linea SWIR 1k Datasheet | |
| 매뉴얼 | Linea SWIR 1k GigE Camera Manual | |
| 매뉴얼 | Linea SWIR GigE Quick Start Guide | |
| 매뉴얼 | Linea SWIR GigE Camera User Manual | |
| 인증서 | Linea SWIR 제품 구성 인증서 | |
