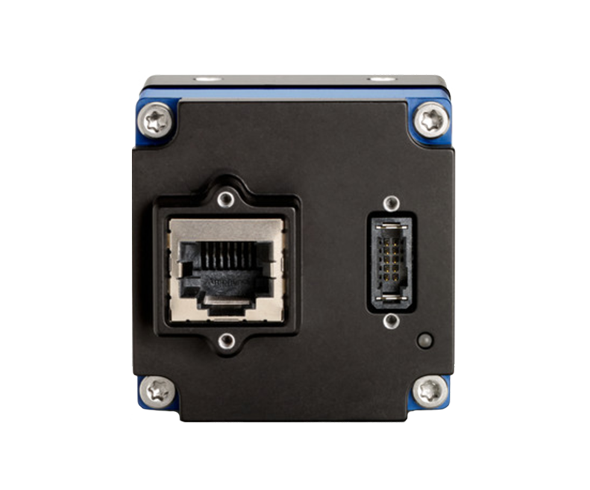

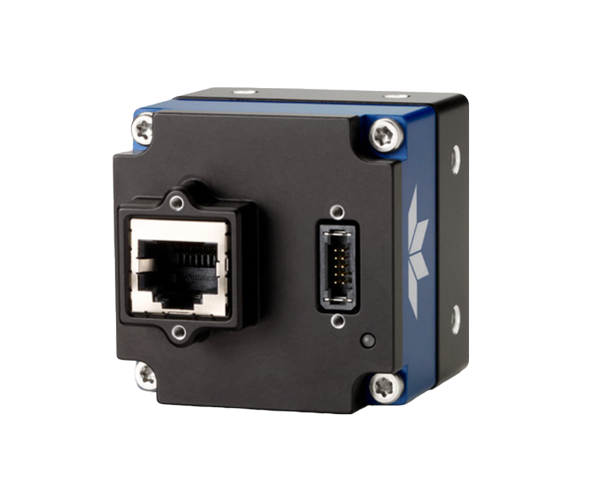

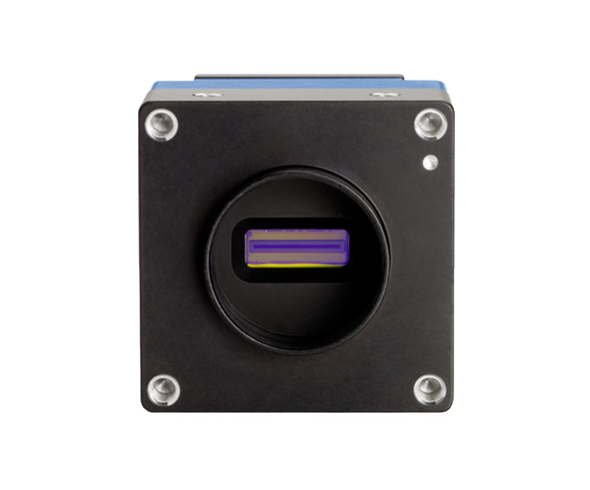

Linea SWIR 512 Mono GigE
SWIR 파장을 이용한 새로운 고속 & 고해상도 솔루션

Cutting-edge InGaAs Sensor

Teledyne DALSA’s short-wave infrared (SWIR) GigE line scan camera features a cutting-edge InGaAs sensor in a compact package for a wide variety of machine vision applications.

This high speed, high resolution camera is the first product in DALSA’s SWIR family. The uncooled sensor features 40 kHz line rate with horizontal resolution of 1024 pixels on a 12.5 µm pitch, delivering great responsivity that can be further improved through pixel binning, which gives customers the option to bin to 512 pixel resolution with 25 µm pixels.

LINEA SWIR SEES RIGHT THROUGH SILICON to image the target on the back of the wafer

Food Sorting Application. Linea SWIR enables more efficient detection

Detection Capabilities

- Moisture Content

- Bruising

- Foreign Objects



Benefits

- Increase Yield

- Reduce Waste

- Improve Quality

주요 사양

Type SWIR
Family Linea SWIR
Partnumber SL-GA-05H04A-00-R
Resolution 512 pixel
Resolution(H*V) 512 x 1Line
Sensor size (Image Circle) 12.8 mm
Frame/Line Rate 40kHz
Pixel Size 25 μm
Interface GigE
Spectral Response 950nm ~ 1700nm
NETD
Sensor type InGaAS
Operating Temp 0 ~ 50 ° C
Temp. Accuracy
Mount
Lens Focal Length
Lens F/#
HFOV
Size 46 x 46 x 55 mm
Mass 150
Responsivity 1600
Full Well 10000
Dynamic Range 66
Quantum Efficiency 66
Maker Teledyne Dalsa

다운로드

구분 파일명 다운로드
카달로그 2021 앤비젼 카달로그 다운로드
데이터시트 Linea SWIR 512 Datasheet 다운로드
매뉴얼 Linea SWIR GigE Quick Start Guide 다운로드
매뉴얼 Linea SWIR GigE Camera User Manual 다운로드
기타 Linea SWIR Material Composition Declaration 다운로드

애플리케이션

  • 실리콘 웨이퍼 이물/외관검사
  • 초분광(Hyperspectral) 계측
  • 전자회로 기판(PCB) 검사
  • 태양광 모듈 검사
  • 의료 장비
  • 음식 분류
  • 미술품 복원
