- Linea Mono 2k, 80kHz, CL
- 합리적인 가격으로 고속/ 고감도/ 다기능 등을 한번에 제공하는 카메라
Powerful enough to use anywhere.
Affordable enough to use everywhere.

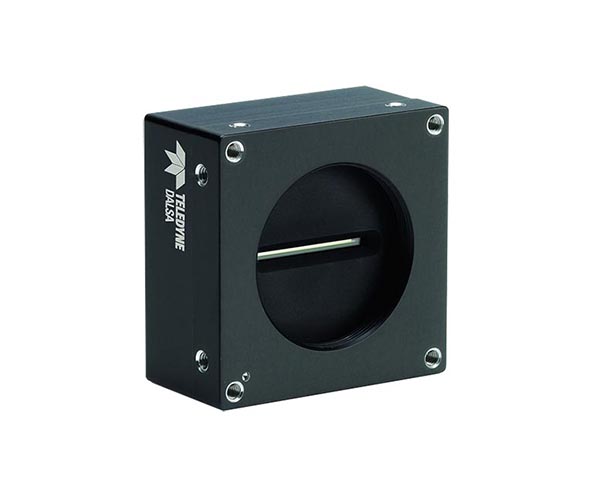

Introducing Linea, a CMOS line scan camera that can help you improve your imaging and lower your costs. Linea starts with an advanced CMOS sensor with high quantum efficiency and low noise for better images. Linea is also packed with advanced features to make your machine vision job almost effortless.

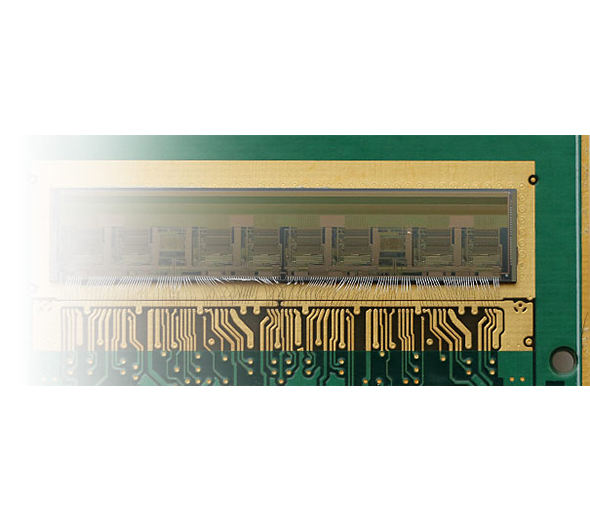

Latest generation CMOS technology.
Linea uses Teledyne DALSA's own advanced CMOS line scan sensors with high QE and low noise for better image quality. Available in resolutions from 2k to 16k, and now with color options.

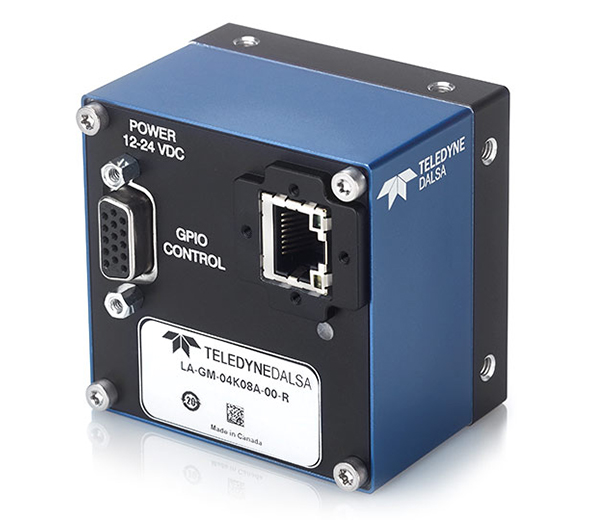

Break through the GigE limit.

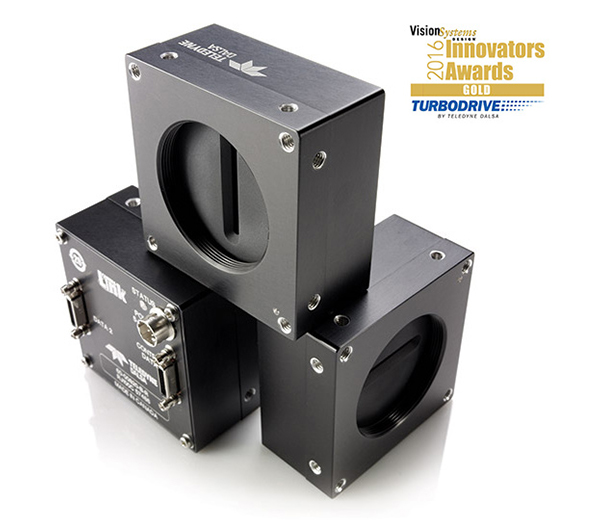

Teledyne DALSA's proprietary TurboDrive™ technology allows Linea GigE to deliver its full image quality at line rates up to 80 kHz—several times faster than competitors—with no changes to your GigE network.
 |
 |
| Camera Link® | GigE Vision + TurboDrive |
| 80 kHz AT 8K RESOLUTION |
80 kHz With TurboDrive Enabled |
주요 사양
| Family | Linea |
|---|---|
| Partnumber | LA-CM-02K08A-00-R |
| Number of Pixels | 2048 pixel |
| Number of Lines | 1 |
| Line Rate | 80 kHz |
| Pixel Size | 7.04 μm |
| Interface | CL_full |
| Spectrum | Mono |
| Responsivity | 20 DN/nJ/cm2(8bit@최소게인) |
| Dynamic Range | 60 dB |
| Sensor size(Image Circle) | 14.42 mm |
| Sensor type | CMOS |
| Mount | M42 x 1/ C/ F |
| Size | 62 x 62 x 30.9 mm |
| Maker | Teledyne Dalsa |
다운로드
| 구분 | 파일명 | 다운로드 |
|---|---|---|
| 카달로그 | [2025년] 앤비젼 전제품 카달로그 |  |
| 데이터시트 | Linea Mono 2k 80 kHz CL Datasheet | |
| 매뉴얼 | Linea Monochrome CL Manual | |
| 매뉴얼 | Piranha4 / Linea Heat Sink Installation Guide | |
| 3D 도면 | Linea Camera Link 2k and 4k 3D Model | |
| 3D 도면 | Linea Mono 2k 80kHz Camera 3D model (STEP) | |
