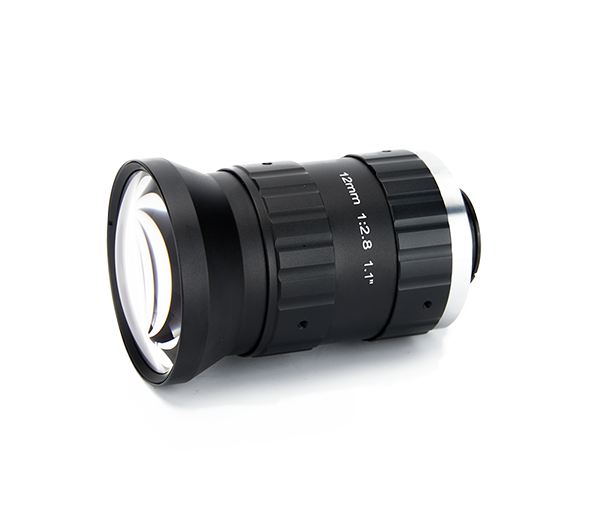

- FA1216E
- High performance lens for 20 Mega pixel camera
Features of Products
- High relative illuminance large aperture
- Distortion < 0.1%
- Focus range from 0.1m to infinity
- Compatible with 1", 2/3" sensor
앤비젼 C-mount 광학계산기
간단한 입력을 통해 C-mount 렌즈 관련
유용한 정보를 얻을 수 있습니다. (로그인 후 사용가능)
1) Focal Length
2) Working Distance
3) FOV
주요 사양
| Family | FA |
|---|---|
| Partnumber | FA1216E |
| Focal length | 12 mm |
| Image circle | 17.6 mm |
| Sensor Format(Inch) | 1.1" |
| F/# | 2.8 ~ 22 |
| Iris Option | Variable |
| Mount | C |
| MOD | 100 mm |
| Distortion | <1.5 % |
| Magnification range | ∞ ~ 0.103 x |
| Magnification | 0.103 x |
| Wavelength | Visible |
| Type | Fixed focal length |
| Maker | Chiopt |
| Resolution | 20MP |
