- Supports external trigger, free r un mode and multiple modes
- Supports Gamma correction, LUT and other ISP functions
- Applies DC 12~24V power supply
- Compatible with Cameralink protocol and
GenICam standard.
- Comply with CE, FCC, UL, RoHS certifications.
1) 2nd Battery inspection
2) Flat panel inspection
3) Film inspection
4) PCB inspection
5) Web inspection
6) Document inspection

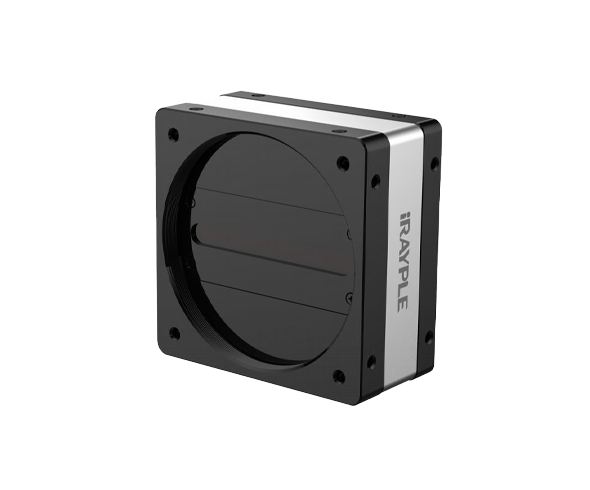

Family | iRAYPLE Line |
---|---|
Partnumber | L5167MX270E |
Number of Pixels | 16384 pixel |
Number of Lines | 2 |
Line Rate | 120 kHz |
Pixel Size | 3.5 μm |
Interface | CoaXPress (CXP-6) |
Chroma | Mono |
Responsivity | |
Dynamic Range | 56.6 dB |
Sensor size(Image Circle) | |
Sensor type | CMOS |
Mount | M72 X 0.75 |

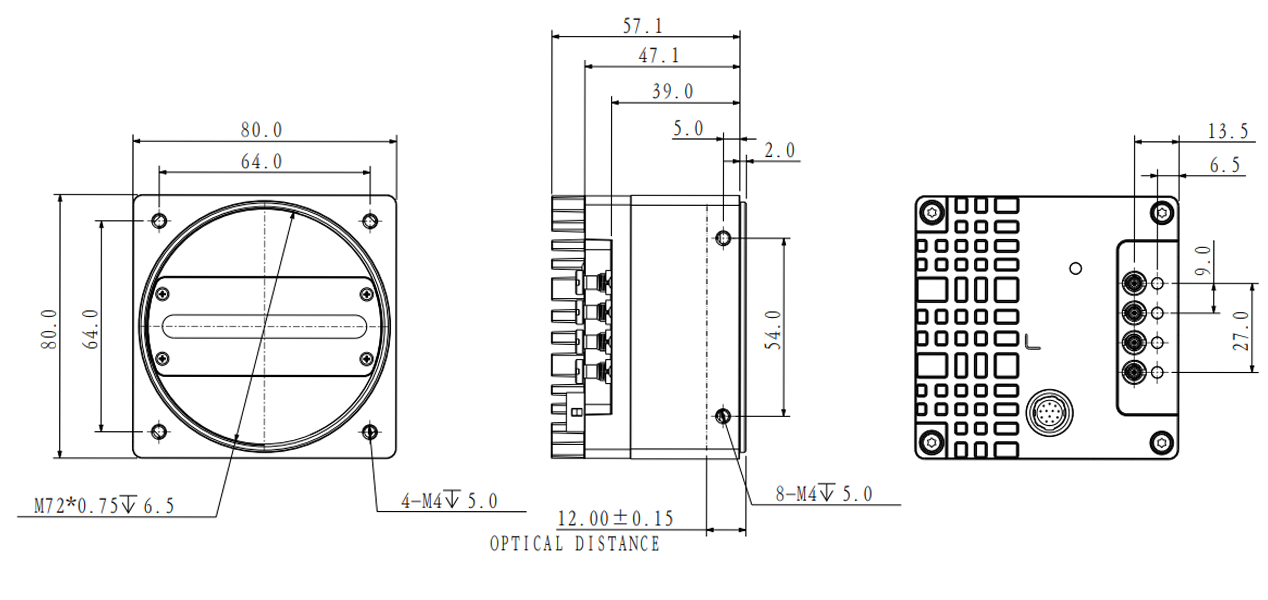

Size | 80 x 80 x 57.1 mm |
Maker | iRAYPLE |
