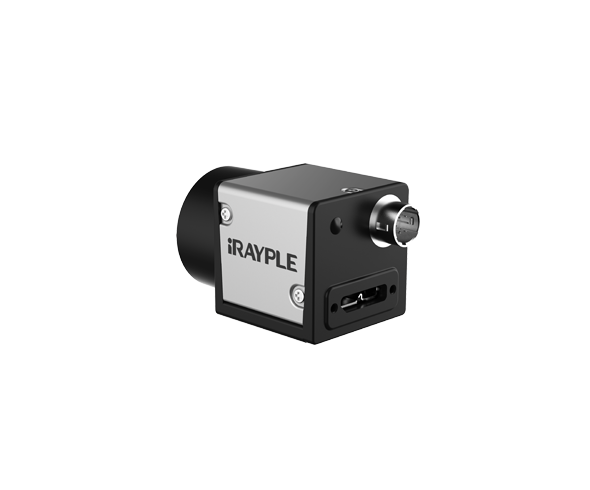

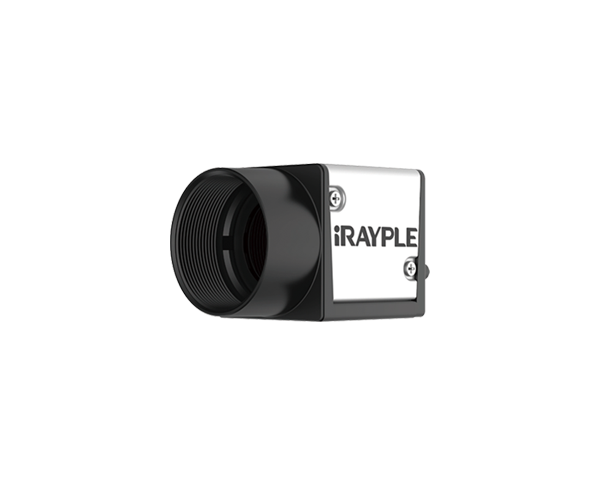

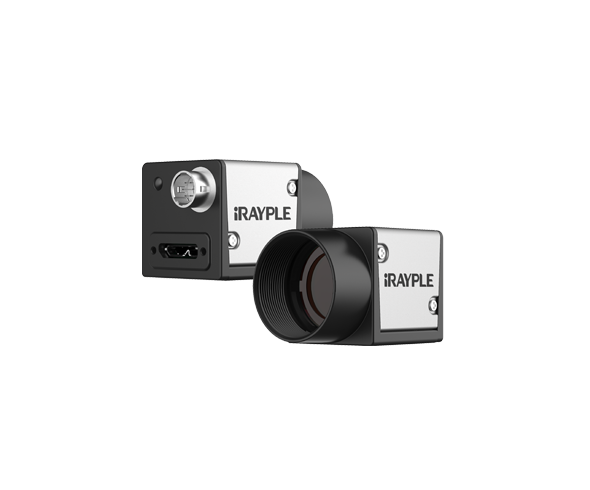

- HuaRay iRAYPLE 12M Mono, USB 3.0
- 우수한 품질을 자랑하는 HuaRay 12M 카메라
iRAYPLE 카메라를
선택해야만하는 이유
USB 3.0 인터페이스 편의성에 안정적인 성능을 더해
기본에 충실한 Huaray 카메라를 소개합니다.
Technical features
- USB3.0 interface, 5Gbps theoretical transfer bandwidth, power supply via USB interface
- Compact size of 29mmx29mmx29mm
- 128MB on-board cache for data transmission or image resend
- Support Software Trigger/Hardware Trigger/Free Run Mode
- Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast etc.
- Support multiple image data formats output/ROI/Mirror, etc.
- Compatible with USB3.0 Vision protocol and GenICam standard
- Conform to CE, FCC, RoHS
Application Industry
- Defect inspection
- SMT
- Vision localization
- Dimension measurement
- Barcode reading
- VR/AR
- Logistic Industry
주요 사양
| Family | iRAYPLE |
|---|---|
| Partnumber | A7A2AMU000E |
| Resolution | 12 Megapixel |
| Resolution(H*V) | 4096 x 3000 pixel |
| Sensor | IMX545 |
| Sensor size(Image Circle) | 13.91 mm |
| Sensor Format(Inch) | 1/1.1" |
| Turbodrive Frame Rate | |
| Frame Rate | 31 fps |
| Pixel Size | 2.74 μm |
| Interface | USB 3.0 |
| Chroma | Mono |
| Readout Method | Global |
| Dynamic Range | 70 dB |
| Sensor type | CMOS |
| Mount | C |

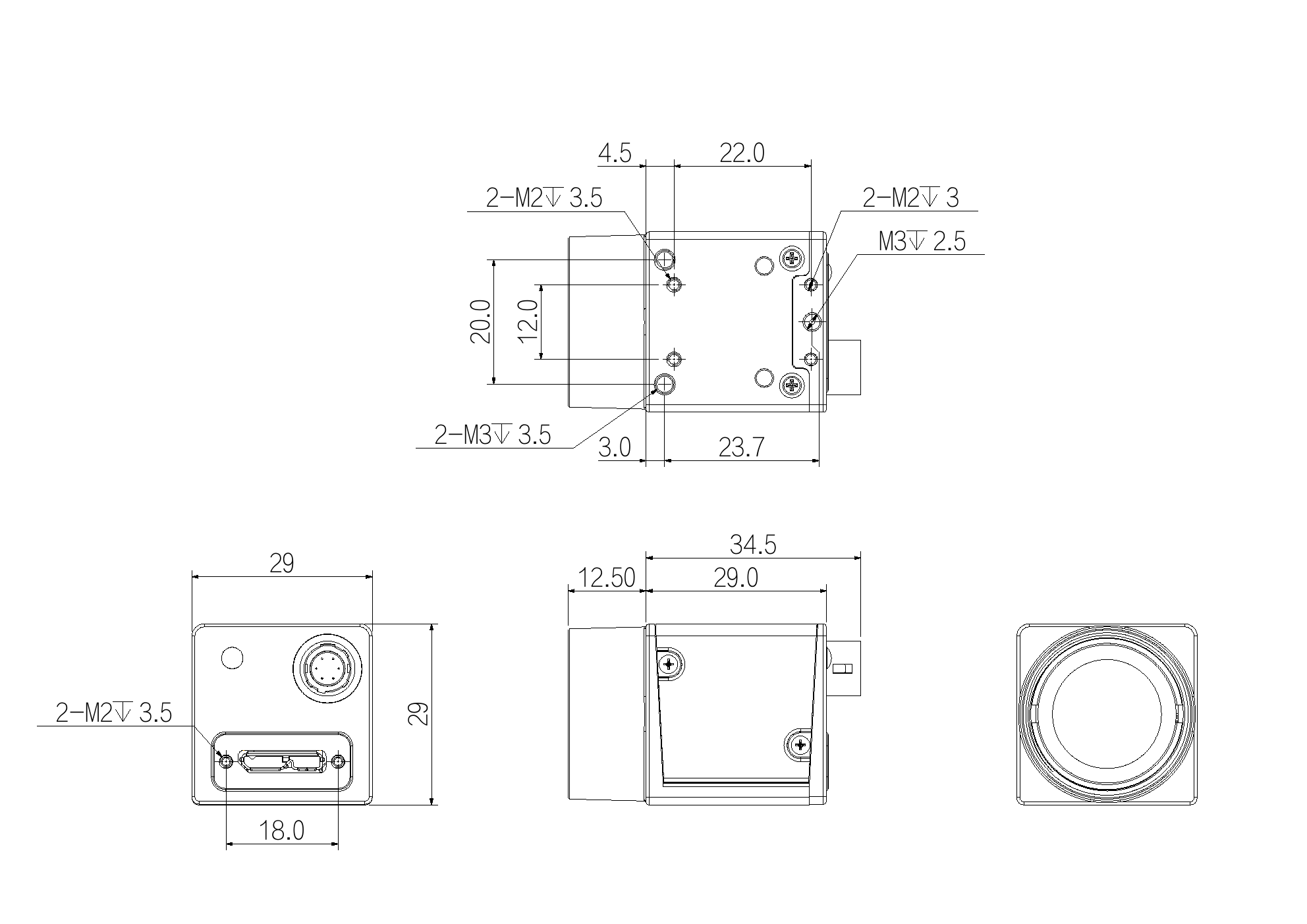

| Size | 29 x 29 x 29 mm |
| Maker | Huaray |
다운로드
| 구분 | 파일명 | 다운로드 |
|---|---|---|
| 카달로그 | [2024년] 앤비젼 전제품 카달로그 |  |
| 데이터시트 | [2024년] HuaRay iRAYPLE 12M Mono, USB 3.0 Datasheet | |
