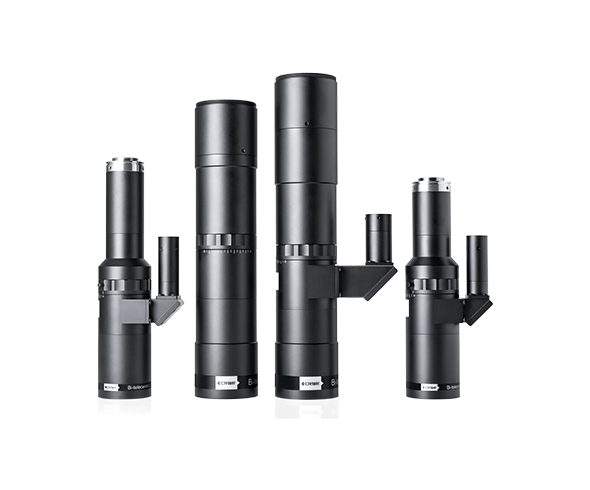

Family | MDT |
---|---|
Partnumber | XF-MDT2X110DZM-D41-VI-M58-11.48 |
Magnification | 2 x |
Image circle | 41.0 mm |
FOV | 20.5 mm |
Coaxial | Coaxial |
DOF | 0.25-5.1 mm |
NA | |
F/# | 10-179.5 |
Wavelength | |
Type | Obj-telecentric |
Mount(변경제작가능) | M58 |
WD | 110 mm |
Distortion | <0.050 % |
Telecentricity | <0.16 ° |
Maker | Canrill |
Length | 270.5 mm |
구분 | 파일명 | 다운로드 |
---|---|---|
카달로그 | [2024년] 앤비젼 전제품 카달로그 | |
데이터시트 | XF-MDT2X110DZM-D41-VI-M58-11.48 Datasheet | |
3D 도면 | XF-MDT2X110DZM-D41-VI-M58-11.48 3D model (DWG) | |
3D 도면 | XF-MDT2X110DZM-D41-VI-M58-11.48 3D model (STEP) |
