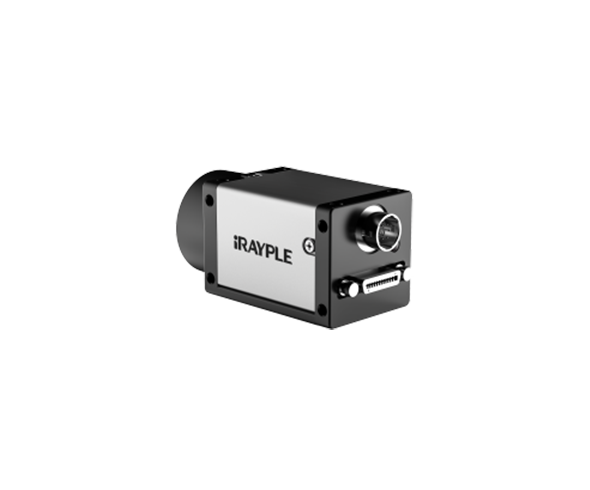

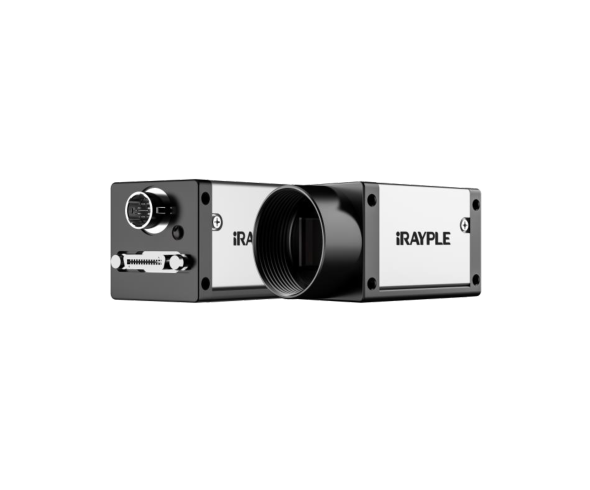

- HuaRay iRAYPLE 9M Color, CL
- Sony IMX 267가 적용된 9M CL카메라
최신 CMOS 센서가 적용된 합리적 가격의
여러 이미지 데이터 형식을 지원하는 Camera Link 카메라를 소개합니다.
Technical features
- CameraLink，suppport base/medium/Full/Deca mode
- Support Software Trigger/Hardware Trigger/Free Run Mode
- Support multiple image data formats output/ROI/Mirror, etc
- Compatible with CameraLink V2.0 protocol and GenICam standard
- ompatible with GenCP V1.1 protocol
- Support PoCL power supply
- Comform to CE, FCC, RoHS
Application Industry
- Defect inspection
- SMT
- Vision localization
- Dimension measurement
- Barcode reading
- VR/AR
- Logistic Industry
주요 사양
| Family | iRAYPLE |
|---|---|
| Partnumber | A7900CK401E |
| Resolution | 9 Megapixel |
| Resolution(H*V) | 4096 x 2160 pixel |
| Sensor | Sony IMX 267 |
| Sensor size(Image Circle) | 15.98 mm |
| Sensor Format(Inch) | 1" |
| Turbodrive Frame Rate | |
| Frame Rate | 27 fps |
| Pixel Size | 3.45 μm |
| Interface | Camera Link |
| Chroma | Color |
| Readout Method | Global |
| Dynamic Range | 70 dB |
| Sensor type | CMOS |
| Mount | C |
| Size | 29 x 29 x 43.8 mm |
| Maker | Huaray |
다운로드
| 구분 | 파일명 | 다운로드 |
|---|---|---|
| 카달로그 | [2024년] 앤비젼 전제품 카달로그 |  |
| 데이터시트 | [2023년] A7900CK401E datasheet | |
| 매뉴얼 | [2022년] HuaRay iRAYPLE Camera Link Area Scan Camera Manual | |

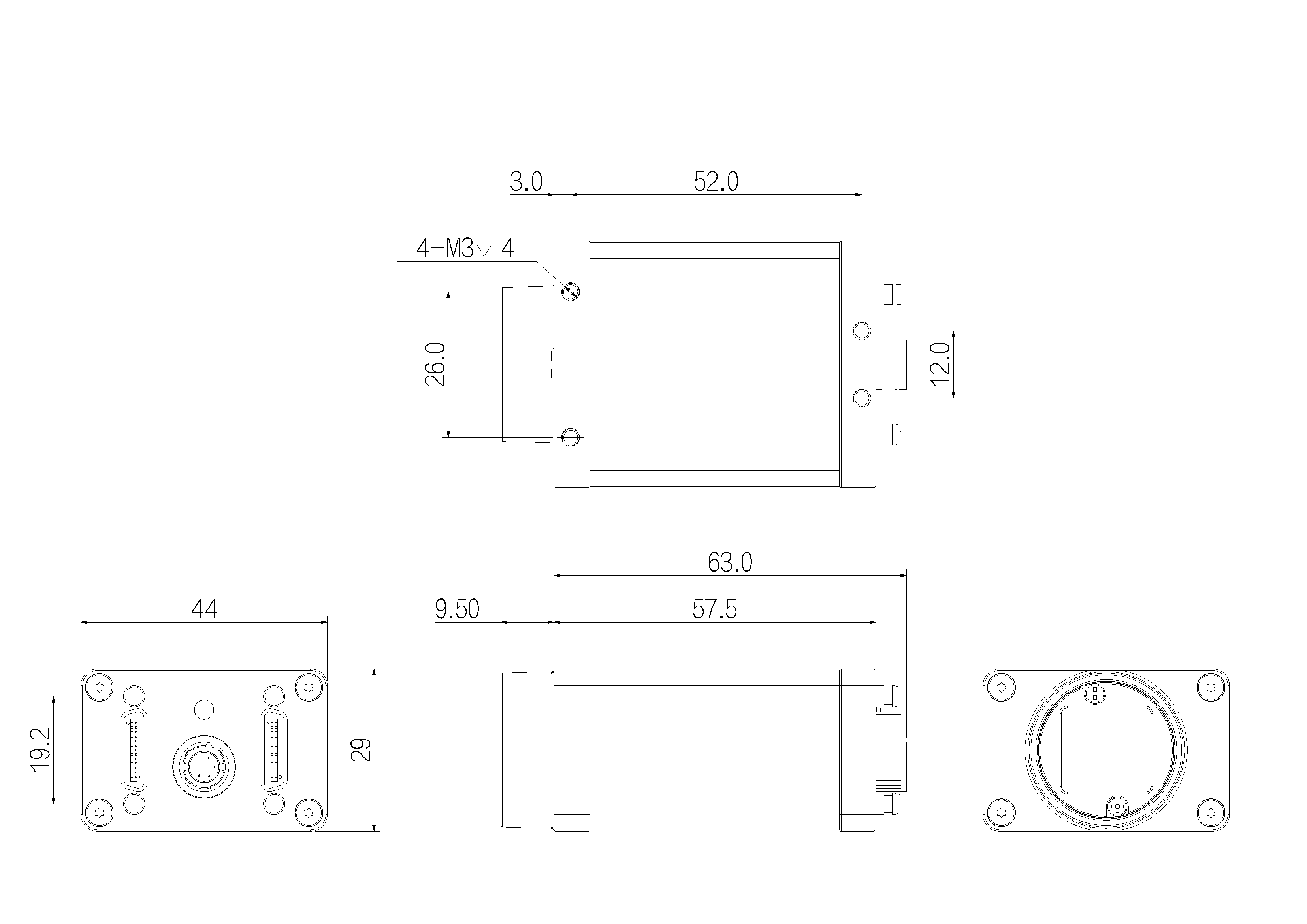

| 3D 도면 | [2023] 29x29x43.8-2004-CL-3D Model | |
