- High resolution and high line rate.
- Rich variety and clear image.
- Wide voltage input, stable operation.
- Modular design, compact structure.
1) 2nd Battery inspection
2) Flat panel inspection
3) Film inspection
4) PCB inspection
5) Web inspection
6) Document inspection
Family | iRAYPLE Line |
---|---|
Partnumber | L5027MK141E |
Number of Pixels | 2048 pixel |
Number of Lines | 2 |
Line Rate | 180 kHz |
Pixel Size | 7 μm |
Interface | Camera Link |
Chroma | Mono |
Responsivity | |
Dynamic Range | 66 dB |
Sensor size(Image Circle) | 14.34 mm |
Sensor type | CMOS |
Mount | M42 x 1 |

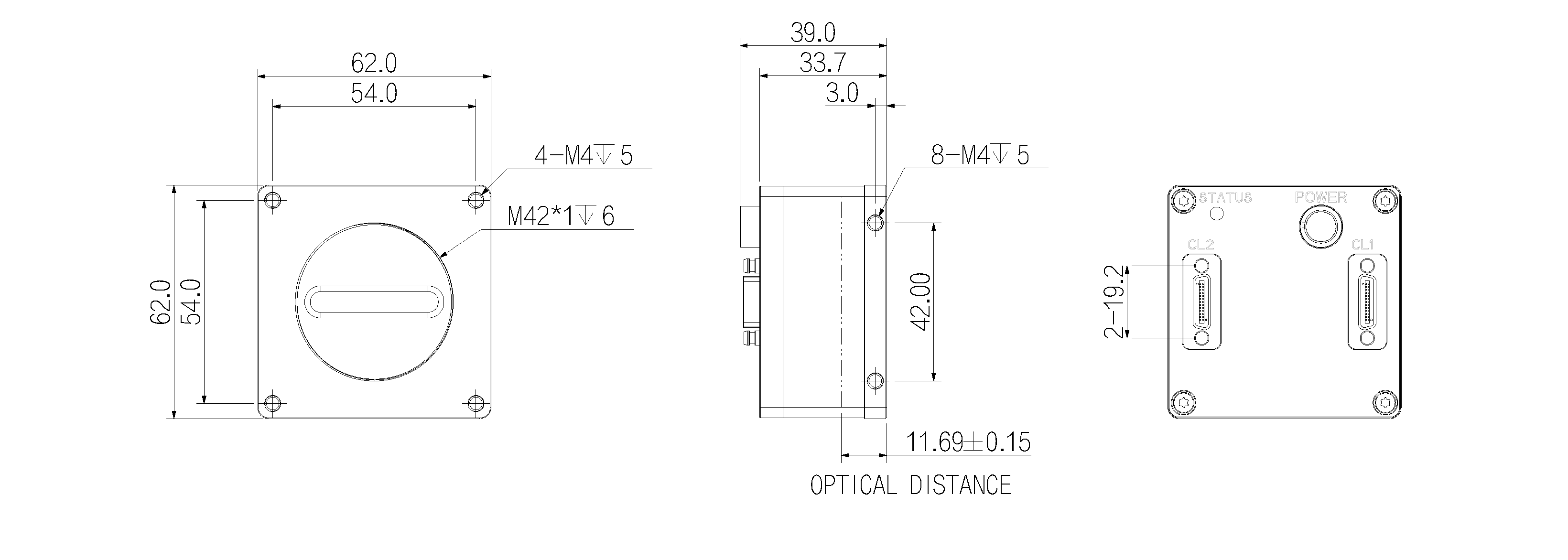

Size | 62 x 62 x 33.68 mm |
Maker | Huaray |
