- Support up to 1/1.8" camera sensors
- 6 models, focal length covering from 8mm to 50mm
- High resolution for 6MP camera in full of view,high edge definition
- Design for close working distance,more suitable for industrial vision inspection scenario
- Ultra low distorion
- Stable sharpness quality when temperature varies from -20℃~50℃
간단한 입력을 통해 C-mount 렌즈 관련
유용한 정보를 얻을 수 있습니다. (로그인 후 사용가능)
1) Focal Length
2) Working Distance
3) FOV

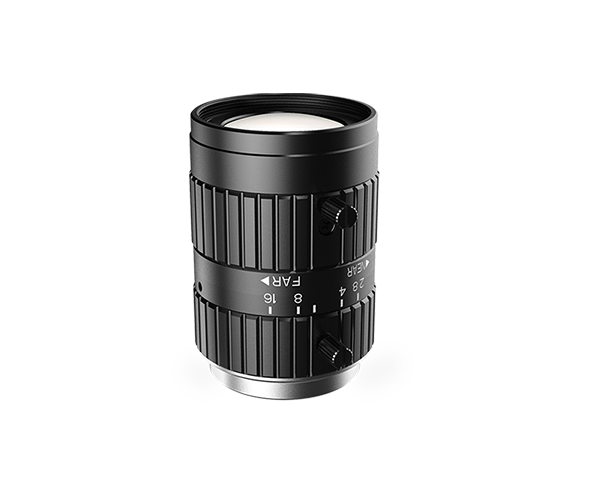

Family | A9-6MP |
---|---|
Partnumber | A9-3528-6MP |
Focal length | 35 mm |
Image circle | 9.4 mm |
Sensor Format(Inch) | 1/1.8'' |
F/# | 2.8 ~ 16 |
Iris Option | Variable |
Mount | C |
MOD | 200 mm |
Distortion | -0.1 % |
Magnification range | 0.044 ~ 0.162 x |
Magnification | |
Wavelength | 436 ~ 656 |
Type | Fixed focal length |
Maker | Huaray |
Resolution | 6MP |
구분 | 파일명 | 다운로드 |
---|---|---|
카달로그 | [2024년] 앤비젼 전제품 카달로그 | |
데이터시트 | [2023년] A9-3528-6MP Datasheet |
