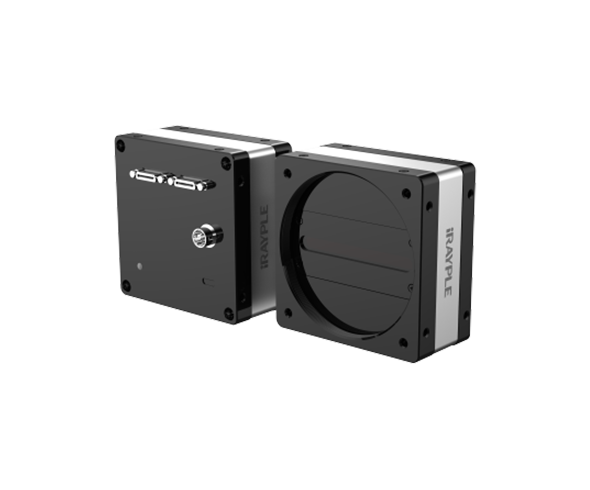

- HuaRay iRAYPLE Line Mono 16K, 45kHz CL
- 최대 6.8Gbps의 bandwidth를 갖는 16k CL line scan 카메라
높은 감도와 빠른 속도의 CMOSIS 센서 기반
L5162MK170E를 소개합니다.

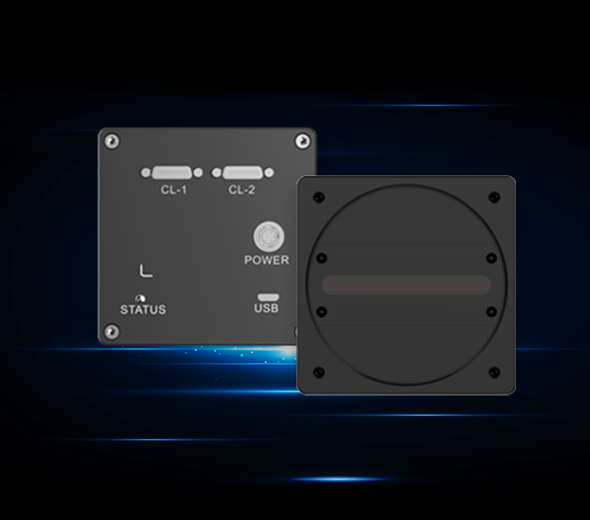

iRAYPLE 라인카메라를
선택해야만하는 이유
주요 특징
- CameraLink supports Full, Medium, Base and
Deca mode with maximum 6.8Gbps bandwidth.
- Supports external trigger, free run mode and
multiple modes.
- Supports Gamma correction, LUT and other
ISP functions.
- Applies DC 24V power supply.
- Compatible with Cameralink protocol and
GenICam standard.
- Comply with CE, FCC, UL, RoHS certifications.
어플리케이션
1) 2nd Battery inspection
2) Flat panel inspection
3) Film inspection
4) PCB inspection
5) Web inspection
6) Document inspection
주요 사양
| Family | iRAYPLE Line |
|---|---|
| Partnumber | L5162MK170E |
| Number of Pixels | 16384 pixel |
| Number of Lines | 1 |
| Line Rate | 50 kHz |
| Pixel Size | 3.5 μm |
| Interface | Camera Link |
| Spectrum | Mono |
| Responsivity | |
| Dynamic Range | 64 dB |
| Sensor size(Image Circle) | 57.34 mm |
| Sensor type | CMOS |
| Mount | M72 |

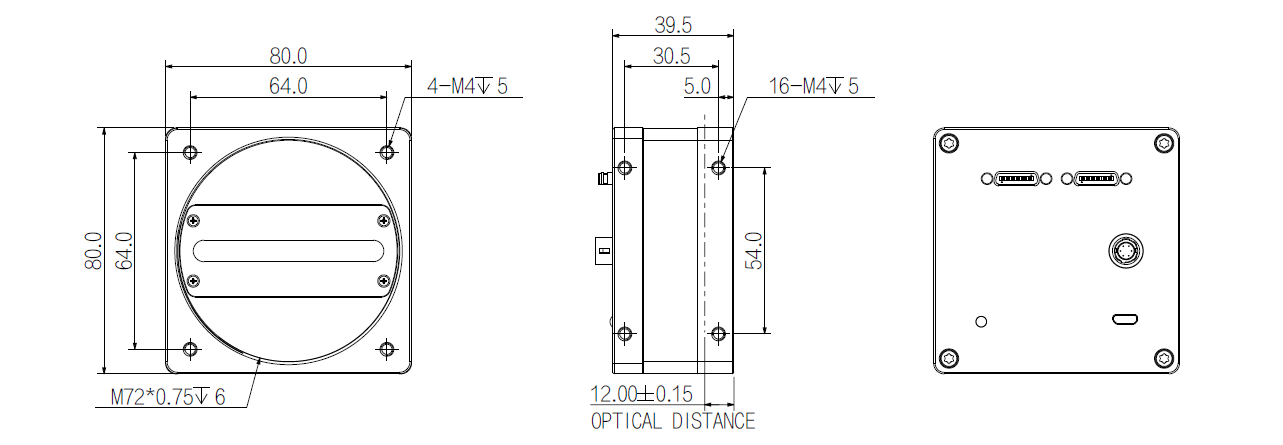

| Size | 80 x 80 x 39.5 mm |
| Maker | Huaray |
다운로드
| 구분 | 파일명 | 다운로드 |
|---|---|---|
| 카달로그 | [2025년] 앤비젼 전제품 카달로그 |  |
| 데이터시트 | [2023년] HuaRay iRAYPLE Line Mono 16K, 45kHz CL Datasheet | |
| 매뉴얼 | [2022년] HuaRay iRAYPLE Camera Link Line Scan Camera Manual V1.0.0 | |
| 매뉴얼 | [2024년] HuaRay iRAYPLE Camera Link Line Scan Camera Manual V2.0.0 | |
| 3D 도면 | [2024년] HuaRay iRAYPLE Line 80x80x39.5 CL 3D 도면 | |
