- Genie Nano 0.5M Color, GigE
- GigE 인터페이스의 한계를 넘는 속도와 다양한 편의 기능을 제공하는 합리적인 가격의 Area scan 카메라
Smaller, faster, stronger, cheaper.
Better in every way that matters.
Genie Nano starts with industry leading CMOS sensors and adds proprietary camera technology for breakthrough speed, a robust build quality for wide operating temperature, a three-year warranty and an unmatched feature set—all at an incredible price.

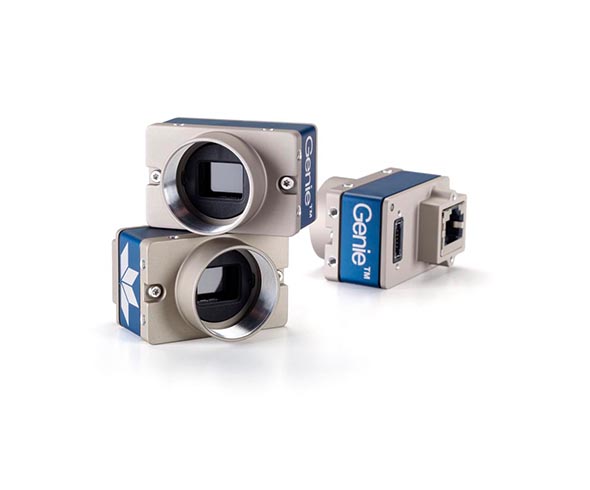

Genie Nano offers models for mono, color, and NIR response. Available lens mounts include C, CS, and F-mount.
Genie Nano offers models for mono, color, and NIR response. Available lens mounts include C, CS, and F-mount.
Latest generation CMOS technology.
Genie Nano is designed to use a range of leading CMOS image sensors, including models from Sony's Pregius and ON Semiconductor's Python lines. With resolutions from VGA to 25 megapixels, the Nano delivers high speed, low noise, and global shutters.
Break through the GigE limit.
Teledyne DALSA's proprietary TurboDrive™ technology allows Genie Nano to deliver its full image quality at faster frame rates—often 150% or higher—with no changes to your GigE network. Get the fastest gigabit ethernet camera on the market.
 |
 |
| GigE Vision | GigE Vision + TurboDrive |
| 52fps Standard Frame Rate |
84 fps With TurboDrive Enabled |
주요 사양
| Family | Genie Nano |
|---|---|
| Partnumber | G3-GC11-C0810 |
| Resolution | 0.5 Megapixel |
| Resolution(H*V) | 816 x 624 pixel |
| Sensor | Sony IMX 433 |
| Sensor size(Image Circle) | 9.25 mm |
| Sensor Format(Inch) | 1/1.7″ |
| Turbodrive Frame Rate | 160 fps |
| Frame Rate | 160 fps |
| Pixel Size | 9 μm |
| Interface | GigE |
| Spectrum | Color |
| Readout Method | Global |
| Dynamic Range | 73 dB |
| Sensor type | CMOS |
| Mount | C |
| Size | 44 x 29 x 21 mm |
| Maker | Teledyne Dalsa |
다운로드
| 구분 | 파일명 | 다운로드 |
|---|---|---|
| 카달로그 | [2025년] 앤비젼 전제품 카달로그 |  |
| 데이터시트 | [2020년] Genie Nano GigE Family Datasheet | |
| 매뉴얼 | [2021년] Genie Nano 1GigE Manual | |
