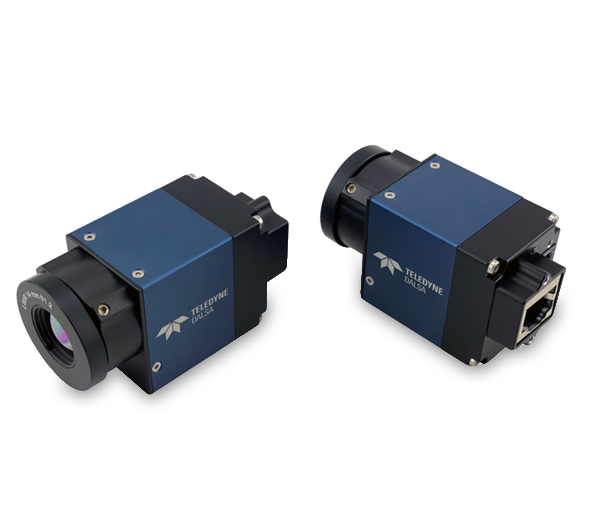

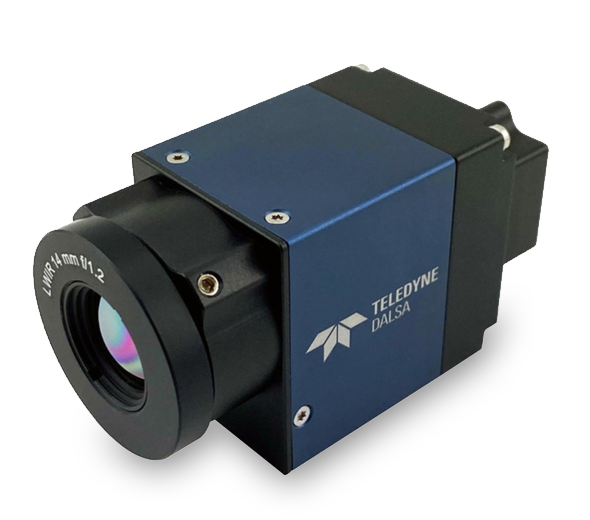

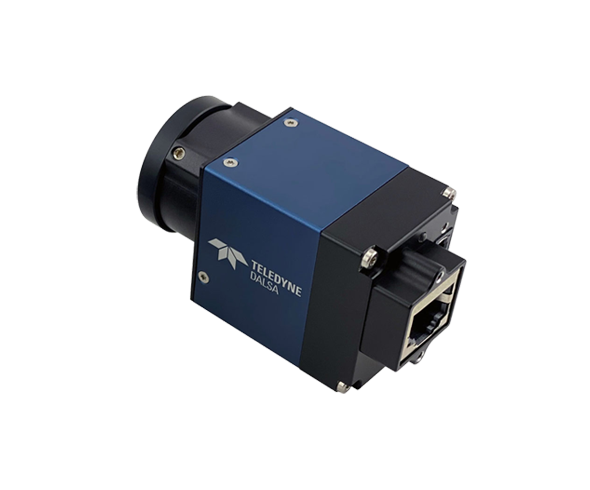

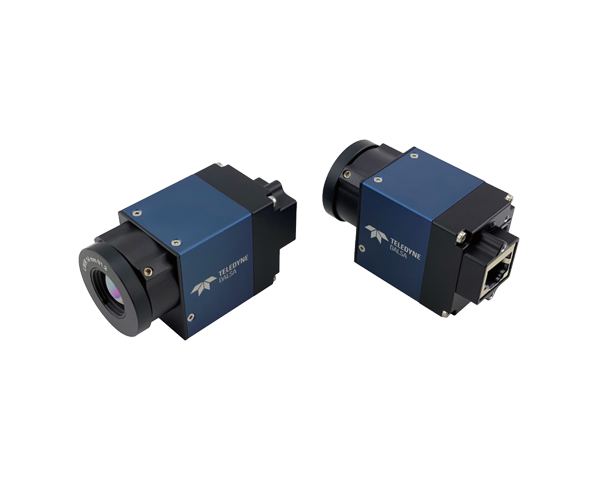

- Calibir DXM 640 (lens 1.1/35)
- VGA 해상도의 소형 Uncooled IR 카메라
Greater functionality. Same small size
The Calibir uncooled Long Wave Infrared camera platform offers outstanding shutterless imaging performance and is optimized for Size, Weight and Power (SWAP). The Calibir DXM640 series features both shutter and shutterless operation and rapid image output on power up while delivering uniform response over the entire operating temperature range, making it ideal for thermal imaging applications requiring uninterrupted image acquisition. ULIS’s gen2 sensor offers an improved NETD and the updated calibration include customized gain correction on a per lens basis to offer even better image performances and response uniformity.
Packed with powerful features
- 640x480 VGA resolution
- 17 μm square pixels
- 29mm x 37mm x 59.53mm
- Gigabit Ethernet (GigE)
- General purpose opto-coupled input/output
- (external trigger,user, count, or timer driven triggering)
- Flexible general purpose Counter and Timer functions
-; for internal/external controls
- Defective Pixel replacement
- Adaptive Image Enhancement
- IEEE1588-2008 Precision Time Protocol
- synchronization capable
- Built-in Pseudo-color for enhanced visualization
주요 사양
| Type | LWIR |
|---|---|
| Family | Calibir DX |
| Partnumber | IR-DMVG-4105000 |
| Resolution | 0.3Mega pixel |
| Resolution(H*V) | 640 x 480 |
| Sensor size (Image Circle) | 13.6 mm |
| Frame/Line Rate | 30 Hz |
| Pixel Size | 17 μm |
| Interface | GigE |
| Spectral Response | 8μm ~ 14μm |
| NETD | <50 mK |
| Sensor type | a-Si microbolometer |
| Operating Temp | -20~ 50 ° C |
| Temp. Accuracy | Non-radiometric |
| Mount | M25 |
| Lens Focal Length | 35 |
| Lens F/# | 1.1 |
| HFOV | 16.9⁰ |
| Size | 29 x 37 x 59 mm |
| Mass | 66.7 |
| Responsivity | |
| Full Well | |
| Dynamic Range | |
| Quantum Efficiency | |
| Maker | Teledyne Dalsa |
