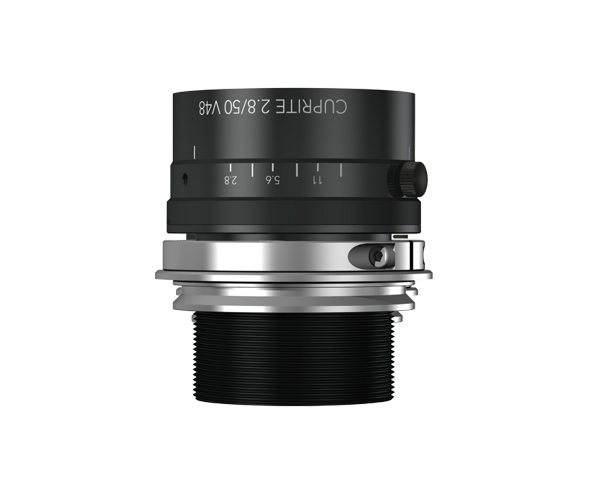

CUPRITE 2.8/50 V48 (구 SWIRON)
SWIR 렌즈



The compact 23 mm focal length SWIRON is lens for 2/3” sensor, for SWIR wavelength range. This lens is extremely robust and insensitive to rough ambient conditions, with the result that the lens retains its high optical imaging performance in industrial environments, as in fl uid inspection systems. The secure locking of the iris and focus settings and the SWIR coating of 800 - 1800 nm is standard for this lens. Ideal for LIDAR application and agriculture applications.

Key features

- Suitable for 2/3” sensor

- Minimized focal shift

- Distortion less than 1%

- Designed for 800 nm - 1800 nm

Application

- Bio-pharmaceuticals / medical

- Fluid inspection

- Food control / agriculture

- Plastic waste sorting

- Solar inspection

- LIDAR

- Hyperspectral imaging / material testing

주요 사양

Family CUPRITE
Partnumber 1087723
Focal length 50.74 mm
Image circle 25.4 mm
Sensor Format(Inch)
F/# 2.8 ~ 16
Iris Option Variable
Mount V48
MOD
Distortion
Magnification range 0.02 ~ 0.2 x
Magnification 0.2 x
Wavelength 800 ~ 1800
Type Fixed focal length
Maker Schneider
Resolution 6.45

다운로드

구분 파일명 다운로드
카달로그 2022 앤비젼 솔루션 가이드(전제품 카달로그) 다운로드
데이터시트 SWIRON 2.8/50 Datasheet (이전) 다운로드
데이터시트 CUPRITE 2.8/50 V48 Datasheet 다운로드
