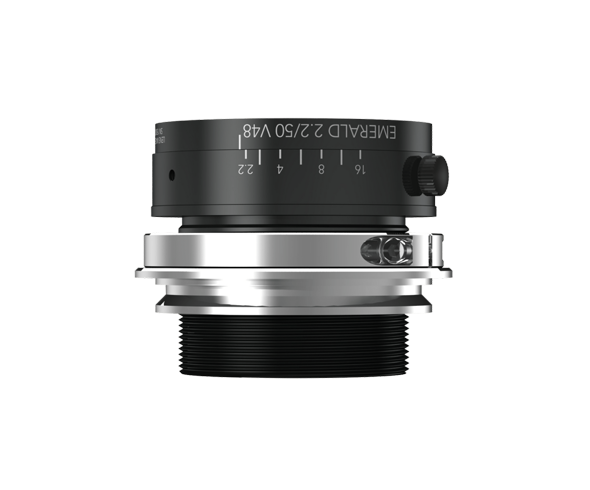

EMERALD 2.2/50 V48 (구 Xenon-Emerald)
Fmount / CanonMount / M42x1 등의 마운트로 사용할 수 있는 렌즈


Large format 50 mm focal length lens covering up to 43.2 mm image circle, optional with V48-Mount developed for cameras with 29 megapixel sensors.

Distinguish a low distortion for a high optical quality over the entire image fi eld of 43.2 mm ideal for scanning. Usable for VIS range to NIR as needed for web inspection.

The robust and compact housing with lockable focus and iris setting makes this lens ideal for sorting systems in factory environmental.

Key features

- For large sensors up to 43.2 mm diagonal

- With V48-Mount available

- Lockable focus and iris setting

- 400 nm to 1000 nm broadband AR coating

- Motorized p-iris available


- Web inspection

- Scanner

- Logistic

- Sorting systems

주요 사양

Partnumber 1070074
Focal length 51.21 mm
Image circle 43.2 mm
Sensor Format(Inch)
F/# 2.2 ~ 16
Iris Option Variable
Mount V48
Distortion -0.1 %
Magnification range 0.05 ~ 0.17 x
Magnification 0.1 x
Wavelength 400 ~ 1000
Type Fixed focal length
Maker Schneider


구분 파일명 다운로드
카달로그 2022 앤비젼 솔루션 가이드(전제품 카달로그) 다운로드
데이터시트 Xenon-Emerald 2.2/50 V48-Mount Datasheet (이전) 다운로드
데이터시트 EMERALD 2.2/50 V48 Datasheet 다운로드
3D 도면 Xenon-Emerald 2.2/50 V48-mount 3D file (STEP) (이전) 다운로드
3D 도면 EMERALD 2.2/50 V48 3D Model(STP) 다운로드
