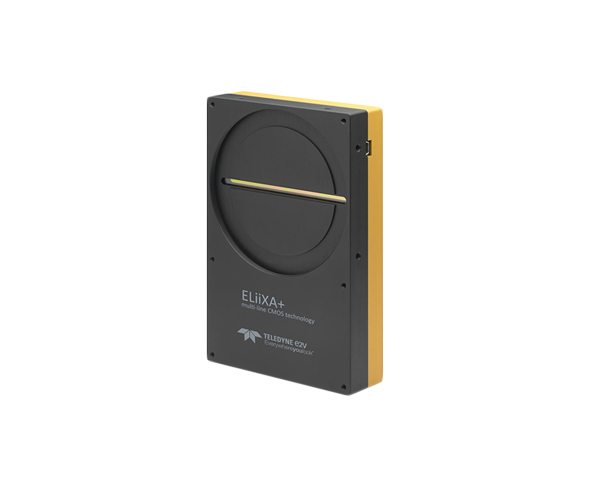

- ELiiXA+ Mono 16K/8K, 50kHz, CL (Quad Line)
- 오랜기간 시장에서 입증된 고감도 Multi Line scan 카메라

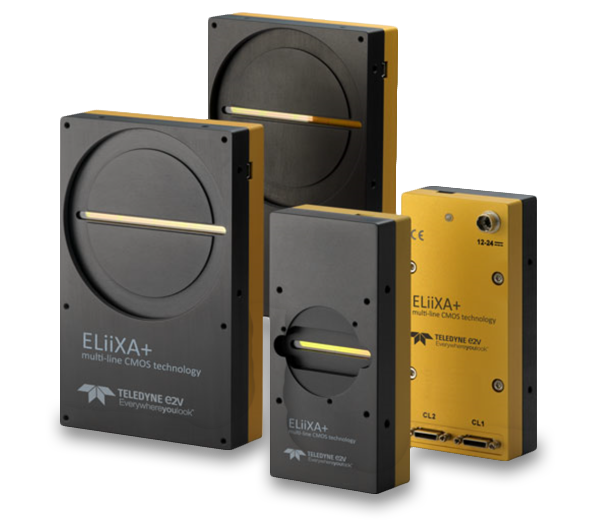

The Power and Speed of Vision
The ELiiXA+ family features Teledyne e2v’s recently developed multi-line CMOS technology, providing high line rates and combining high response with extremely low noise levels. This delivers high signal to noise ratio even when short integration times are required or when illumination is limited. Pixels are arranged in two active lines and dual line filter configuration allows the cameras to be operated in several modes.
Typical Applications
- • Flat panel display inspection
- • Printed circuit board inspection
- • Solar cell inspection
- • High quality raw material
- • High resolution document scanning
- • Surface inspection
- • Printing inspection
- • Electronic inspection
- • High quality raw materia
- • High quality food and pharmaceutical inspection
- • Rail inspection
- • Industrial inspection
- • And more!
주요 사양
| Family | ELiiXA+ |
|---|---|
| Partnumber | EV71YC4MCL1605-BA1 |
| Number of Pixels | 16384 pixel |
| Number of Lines | 4 |
| Line Rate | 50 kHz |
| Pixel Size | 5 μm |
| Interface | Camera Link |
| Spectrum | Mono |
| Responsivity | 16 DN/nJ/cm2(8bit@최소게인) |
| Dynamic Range | 70 dB |
| Sensor size(Image Circle) | 81.92 mm |
| Sensor type | CMOS |
| Mount | M90 x 1 |
| Size | 100 x 156 x 36 mm |
| Maker | Teledyne Dalsa |
다운로드
| 구분 | 파일명 | 다운로드 |
|---|---|---|
| 카달로그 | [2025년] 앤비젼 전제품 카달로그 |  |
| 데이터시트 | ELiiXA+ Mono 16k/8k CL, CXP Datasheet | |
| 매뉴얼 | ELiiXA+ Mono 16k/8k CameraLink Manual | |
