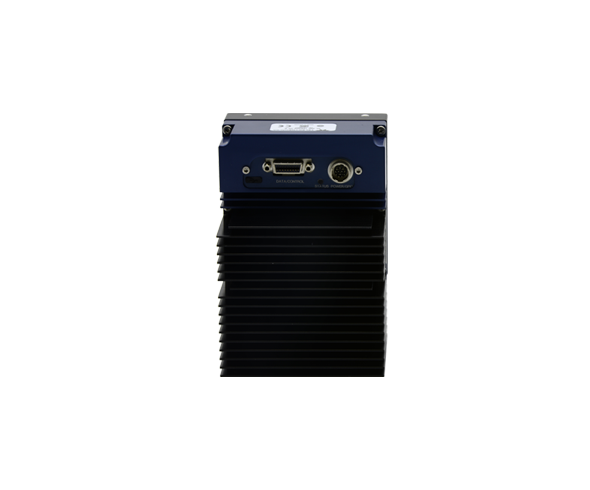

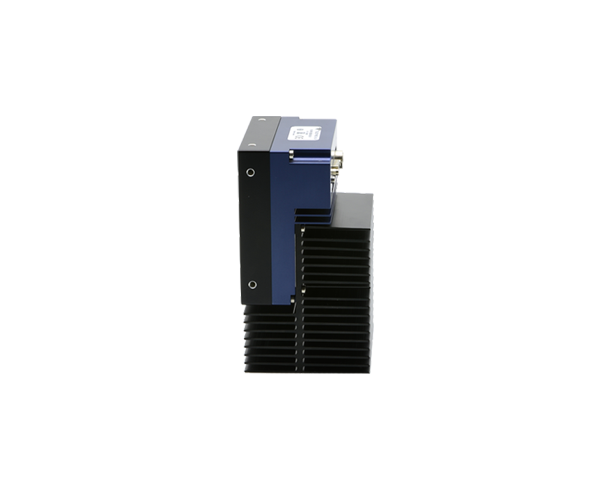

- Linea HS multifield 16k, CLHS CX4
- 세가지 영상을 한번에 획득 가능한 LineaHS 16k MF3 카메라
현존하는 TDI 라인스캔 카메라중
가장 높은 생산성을 제공하는 LineaHS 카메라를 소개합니다.
앤비젼에서 제공하는 Linea HS 16K는 최신 CMOS 기술이 적용된 TDI 카메라로 빠른 속도와 높은 감도, 낮은 노이즈 등 최고의 품질을 제공합니다. 또한, 다양한 이미징 조건을 구현한 영상 획득도 가능하여 검출력을 향상시킬수 있습니다.
Feature Highlight: Multifield
Multifield is a new imaging technology that enables capturing multiple images using various lighting conditions (e.g. brightfield, darkfield, and backlight) in a single scan.
Teledyne DALSA Linea HS Multifield camera is the first product in the industry capable of capturing up to three images using light sources at different wavelengths. The camera uses advanced wafer-level coated dichroic filters with minimum spectral crosstalk to spectrally isolate three images captured by separate TDI arrays. Depending on the light sources used, narrowband filters may be needed at the light sources.
This new technology significantly improves inspection speeds and image quality, as it eliminates the need for multiple scans. The difference between traditional color imaging and multifield imaging is the filter technology. Conventional color filters have significant spectral crosstalk between RGB channels, while the multifield filters have minimum spectral crosstalk
Teledyne DALSA Linea HS Multifield camera is the first product in the industry capable of capturing up to three images using light sources at different wavelengths. The camera uses advanced wafer-level coated dichroic filters with minimum spectral crosstalk to spectrally isolate three images captured by separate TDI arrays. Depending on the light sources used, narrowband filters may be needed at the light sources.
This new technology significantly improves inspection speeds and image quality, as it eliminates the need for multiple scans. The difference between traditional color imaging and multifield imaging is the filter technology. Conventional color filters have significant spectral crosstalk between RGB channels, while the multifield filters have minimum spectral crosstalk
Equipped for the Future
The Linea HS brings your imaging system the speed and power of the PCIe Gen 3 platform when paired with Xtium2.Leveraging the high efficiency of the CameraLink HS interface's X-protocol, the Xtium2 CLHS PX8 supports Active Optical Cable (AOC) and industry standard CX4 cables with up to 7-CLHS lanes, each operating at 10.3 Gbits/s, to acquire images at up to 8.4 GBytes/s.
With slim, robust, and cost effective fiber optic cabling, Linea HS and Xtium2 allow cable lengths beyond 100 meters to enable the newest and most demanding vision applications.
With slim, robust, and cost effective fiber optic cabling, Linea HS and Xtium2 allow cable lengths beyond 100 meters to enable the newest and most demanding vision applications.
Typical Applications
The Linea HS enables high speed and high sensitivity imaging in light starved conditions like these
If you need maximum throughput in the toughest conditions, you need Linea HS.
- FPD Inspection
- PCB Inspection
- Wafer Inspection
- Gene Sequencing
- Digital Pathology
If you need maximum throughput in the toughest conditions, you need Linea HS.
주요 사양
| Family | Linea HS |
|---|---|
| Partnumber | HL-HF-16K13T-00-R |
| Number of Pixels | 16384 pixels |
| Number of Lines | 64 + 128 + 64 |
| Line Rate | 133 x 3 kHz |
| Pixel Size | 5 µm |
| Interface | Camera Link HS CX4 |
| Spectrum | Color / Multifield |
| Responsivity | See graph DN/nJ/cm² |
| Dynamic Range | 70 dB |
| Sensor size(Image Circle) | 81.92 mm |
| Sensor type | CMOS |
| Mount | M90 x 1 |
| Size | 97 x 140.5 x 78.6 mm |
| Maker | Teledyne Dalsa |
다운로드
| 구분 | 파일명 | 다운로드 |
|---|---|---|
| 카달로그 | [2025년] 앤비젼 전제품 카달로그 |  |
| 카달로그 | [2024년] 앤비젼 반도체 분야 솔루션 소개서 | |
| 데이터시트 | Linea HS multifield 16k, 400kHz Datasheet | |
| 매뉴얼 | [2023년] Linea HS series Manual | |
| 3D 도면 | Linea ML & HS 16k 3D Model (STEP) | |
