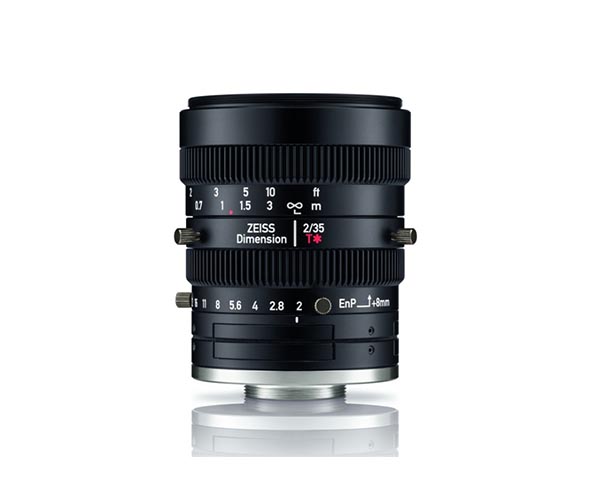

- Dimension 2/35
- 성능이 뛰어난 C-Mount 렌즈
ZEISS Dimension Lenses
High precision for greater efficiency.
The lenses developed for use with a C-mount are designed for image sensors up to a size of 4/3” and offer exceptional image quality in a compact, lightweight and rugged aluminum housing. The ZEISS Dimension® family consists of six focal lengths ranging from 8 to 50 millimeters. Almost all ZEISS Dimension lenses have the same outer diameter for reliable planning when mounting them in production facilities.
Precision and ease of operation are key factors that make the ZEISS Dimension family stand out. With the help of the innovative adjustment mechanism*, it is easy to compensate for tolerances at the camera mount. In addition to the C-mount’s stable screw connection, locking screws on the focus and aperture rings guarantee a high degree of stability and ensure that the settings remain in the correct position.
앤비젼 C-mount 광학계산기
간단한 입력을 통해 C-mount 렌즈 관련
유용한 정보를 얻을 수 있습니다. (로그인후 사용가능)
1) Focal Length
2) Working Distance
3) FOV
주요 사양
| Family | Dimension |
|---|---|
| Partnumber | 2230-000 |
| Focal length | 35 mm |
| Image circle | 21.64 mm |
| Sensor Format(Inch) | 4/3'' |
| F/# | 2 |
| Iris Option | Fixed |
| Mount | C |
| MOD | 209.2 mm |
| Distortion | <-1.9 % |
| Magnification range | |
| Magnification | |
| Wavelength | 400 ~ 1000 |
| Type | Fixed focal length |
| Maker | Carl Zeiss AG |
| Resolution | 20MP |
다운로드
| 구분 | 파일명 | 다운로드 |
|---|---|---|
| 카달로그 | [2025년] 앤비젼 전제품 카달로그 |  |
| 카달로그 | Zeiss lenses Brochure | |
| 데이터시트 | Dimension 2/35 Datasheet | |
| 매뉴얼 | Zeiss-dimension Manual | |
