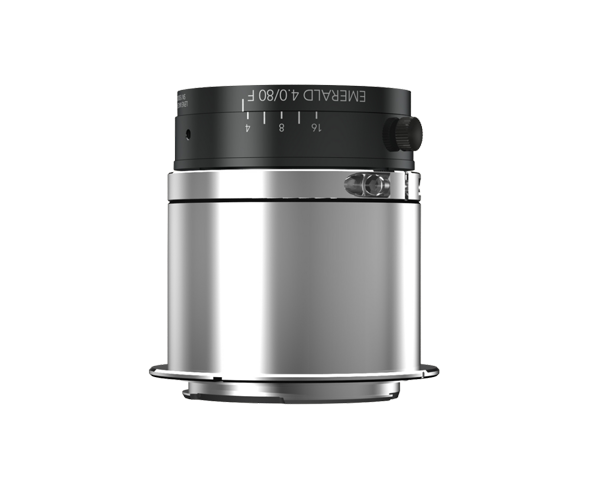

- Xenon-Emerald 4.0/80 F-mount
- 성능이 뛰어난 F-Mount 렌즈
Large format 80 mm focal length lens covering up to 43.2 mm image circle, optional with F-Mount developed for cameras with 29 megapixel sensors.
Distinguish a low distortion for a high optical quality over the entire image fi eld of 43.2 mm ideal for scanning. Usable for VIS range to NIR as needed for web inspection. The robust and compact housing with lockable focus and iris setting makes this lens ideal for sorting systems in factory environmental.
Distinguish a low distortion for a high optical quality over the entire image fi eld of 43.2 mm ideal for scanning. Usable for VIS range to NIR as needed for web inspection. The robust and compact housing with lockable focus and iris setting makes this lens ideal for sorting systems in factory environmental.
Key features
- For large sensors up to 43.2 mm diagonal
- With F-Mount available
- Lockable focus and iris setting
- 400 nm to 1000 nm broadband AR coating
Application
- Web inspection
- Scanner
- Logistic
- Sorting systems
주요 사양
| Family | Xenon-Emerald |
|---|---|
| Partnumber | 1085723 |
| Focal length | 80 mm |
| Image circle | 80 mm |
| Sensor Format(Inch) | |
| F/# | 4 |
| Iris Option | |
| Mount | F |
| MOD | 221 mm |
| Distortion | -0.05 % |
| Magnification range | 0.01 ~ 0.33 x |
| Magnification | 0.1 x |
| Wavelength | 400 ~ 1000 |
| Type | Fixed focal length |
| Maker | Schneider |
| Resolution |
다운로드
| 구분 | 파일명 | 다운로드 |
|---|---|---|
| 카달로그 | 2020 앤비젼 카달로그 |  |
| 데이터시트 | Xenon-Emerald 4.0/80 Datasheet | |
| 3D 도면 | Xenon-Emerald 4.0/80 3D Model_F | |
| Xenon-Emerald 4.0/80 3D Model_V48 | |
|
| Xenon-Emerald 4.0/80 3D Model (STEP) | |
