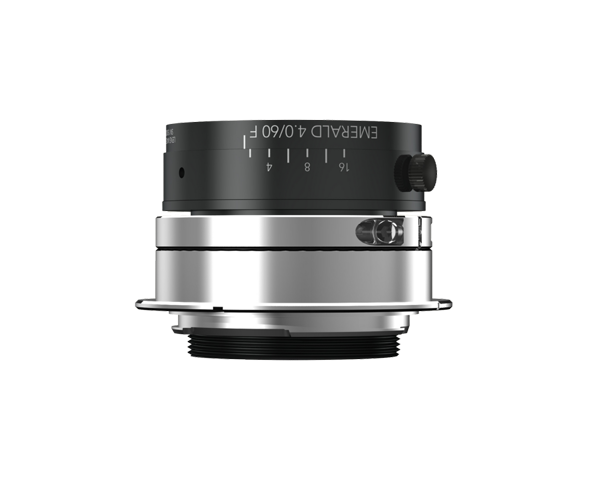

Xenon-Emerald 4.0/60 F-mount
성능이 뛰어난 F-Mount 렌즈

Large format 60 mm focal length lens covering up to 43.2 mm image circle, optional with F-Mount developed for cameras with 29 megapixel sensors. Distinguish a low distortion for a high optical quality over the entire image fi eld of 43.2 mm ideal for scanning.

Usable for VIS range to NIR as needed for web inspection. The robust and compact housing with lockable focus and iris setting makes this lens ideal for sorting systems in factory environmental.

Key features

- For large sensors up to 43.2 mm diagonal

- With F-Mount available

- Lockable focus and iris setting

- 400 nm to 1000 nm broadband AR coating

Application

- Web inspection

- Scanner

- Logistic

- Sorting systems

주요 사양

Family Xenon-Emerald
Partnumber 1085115
Focal length 60 mm
Image circle 60 mm
Sensor Format(Inch)
F/#
Iris Option
Mount
MOD 643 mm
Distortion -0.1 %
Magnification range 0.01 ~ 0.33 x
Magnification 0.33 x
Wavelength 400 ~ 1000
Type Fixed focal length
Maker Schneider
Resolution

다운로드

구분 파일명 다운로드
카달로그 2020 앤비젼 카달로그 다운로드
데이터시트 Xenon-Emerald 4.0/60 Datasheet 다운로드
Xenon-Emerald 4.0/60 F-Mount Datasheet 다운로드
3D 도면 Xenon-Emerald 4.0/60 3D Model_F 다운로드
Xenon-Emerald 4.0/60 3D Model_V48 다운로드
Xenon-Emerald 4.0/60 3D Model (STEP) 다운로드
