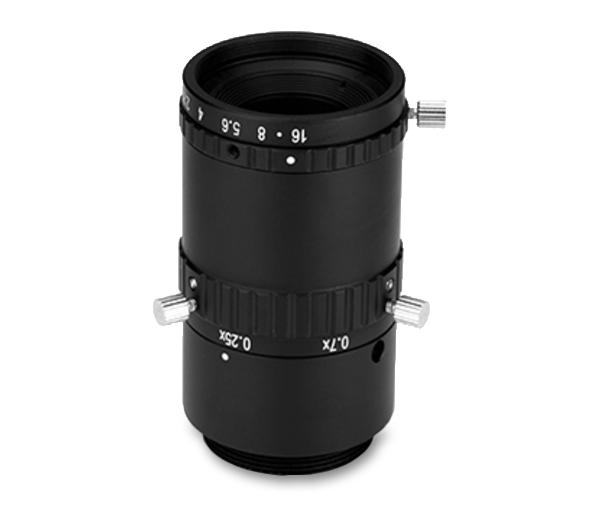

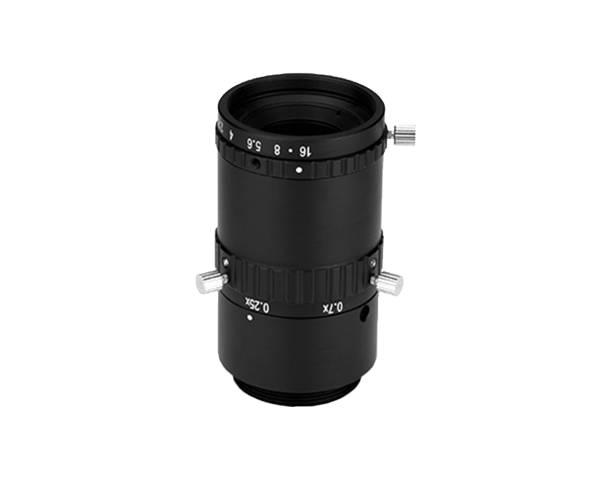

ML5010A
1.1'' Macro Lens

Features of Products

- Ultra-low distortion, high performance design

- Micro lens, with WD 95.4-132.4mm

- 12MP

- Large format, can perfectly match IMX253LLR sensor(1.1'' 12MP)

- Magnification from 0.5x to 0.8x

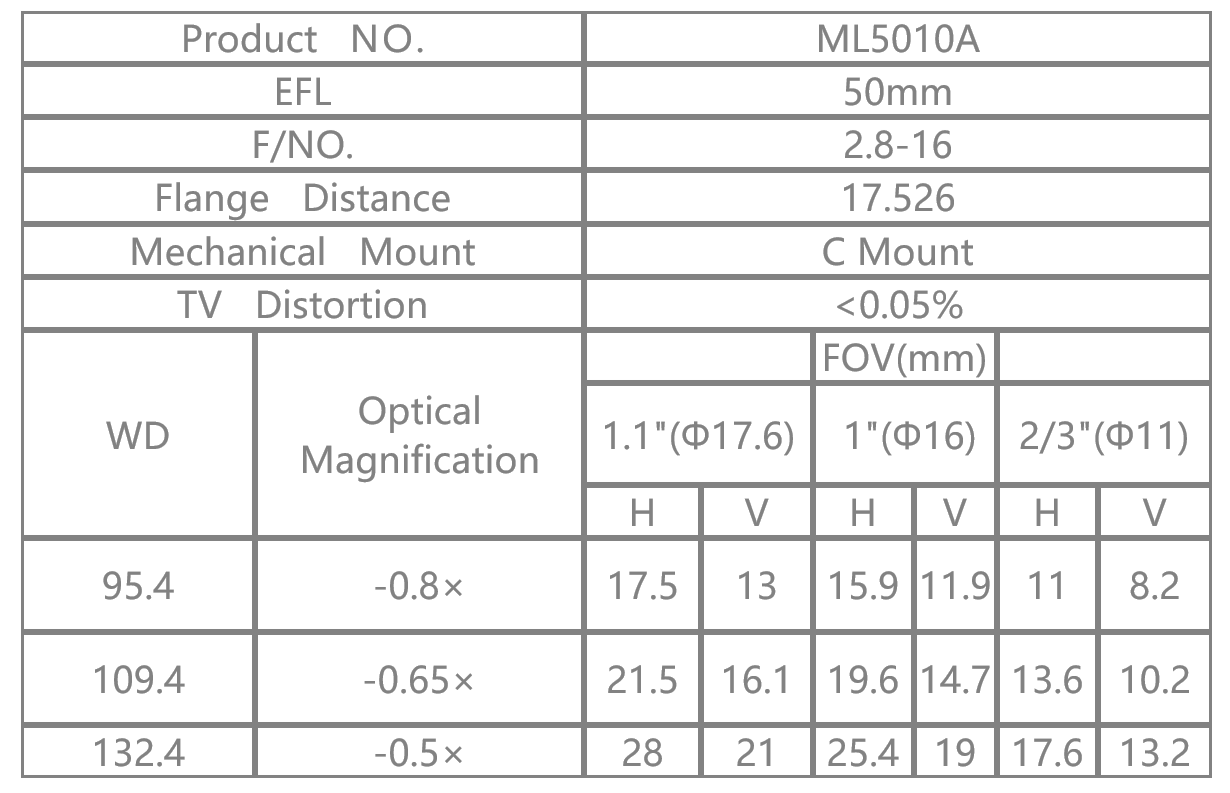

Specification of Products

주요 사양

Family 1.1'' Macro
Partnumber ML5010A
Focal length 50 mm
Image circle 17.6  mm
Sensor Format(Inch) 1.1''
F/# 2.8 ~ 16
Iris Option Variable
Mount
MOD 95.4 mm
Distortion <0.05 %
Magnification range 0.5 ~ 0.8 x
Magnification
Wavelength Visible
Type Fixed focal length
Maker Chiopt
Resolution
