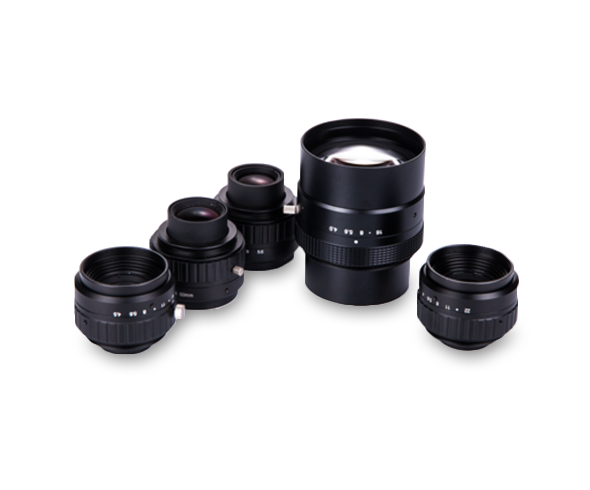

LS3508A 0.08x
라인스캔용 작은 사이즈의 렌즈

Features of Products

  •  Designed for compact size line scan camera
  •  High resolution up to 5u pith size
  •  Small Magnification for the application of
  •  large size inspecion.
  •  Option: standard filter thread
  •  Interface from V-Mount to M42,M58,F-mount

광학계산기

Large format 렌즈의 배율, F/# 입력을 통해

유용한 정보를 얻을 수 있습니다.



1) Back Focal Length

2) Working Distance

3) Total Track

4) DOF

주요 사양

Family LS 4K ~ 8K
Partnumber LS3508A
Magnification range 0.04 ~ 0.1 x
Magnification 0.08 x
Image circle 30 mm
Focal length 35 mm
F/# 4.5
Wavelength Visible
Type Fixed focal length
Mount V38
Maker Chiopt

다운로드

구분 파일명 다운로드
카달로그 [2024년] 앤비젼 전제품 카달로그 다운로드
데이터시트 LS3508A Datasheet 다운로드
