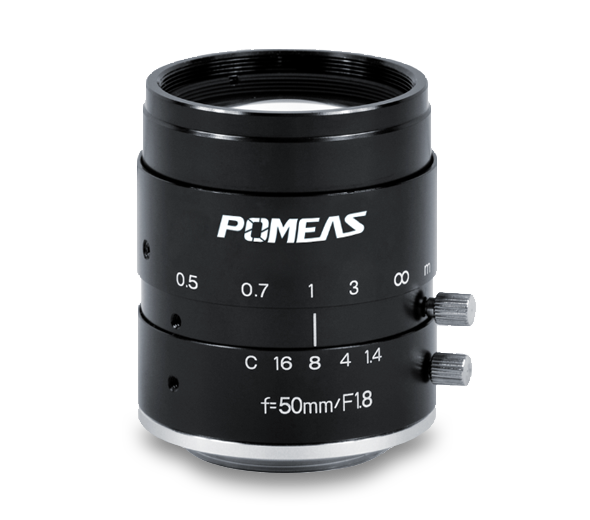

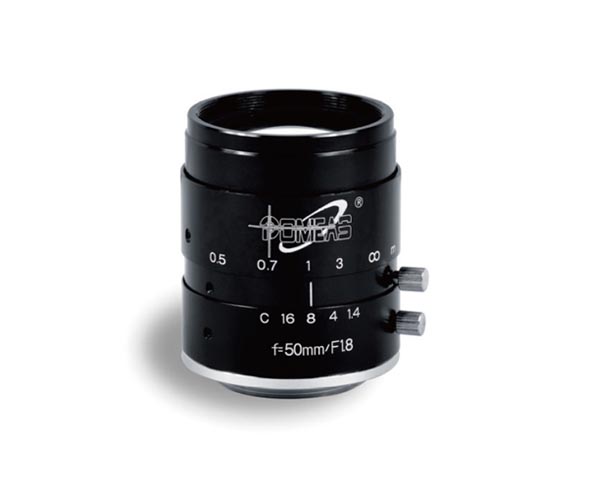

PMS-50MC
가성비가 뛰어난 C-Mount 렌즈

안내: 본 제품은 단종 예정입니다.



단종된 제품과 비슷한 사양의 대체 상품을 원하신다면 아래 리스트를 참고 부탁드립니다.

자세한 사항은 담당 영업사원에게 문의 바랍니다.



대체 제품

PMS-50MC10M

Products Advantage

- Support 1.5MP 2/3” camera

- Focus and iris locking screw to ensure stable focusing

- Low distortion, sharp image

- Compact structure, excellent optical performance

Actual Image

widely used in machine vision and automatic production field.

앤비젼 C-mount 광학계산기

간단한 입력을 통해 C-mount 렌즈 관련

유용한 정보를 얻을 수 있습니다. (로그인 후 사용가능)



1) Focal Length

2) Working Distance

3) FOV

주요 사양

Family Pomeas
Partnumber PMS-50MC
Focal length 50 mm
Image circle 10.6  mm
Sensor Format(Inch) 2/3"
F/# 1.8
Iris Option
Mount
MOD 500 mm
Distortion -0.04 %
Magnification range
Magnification
Wavelength
Type Fixed focal length
Maker Pomeas
Resolution 1.5MP

다운로드

구분 파일명 다운로드
카달로그 [2025년] 앤비젼 전제품 카달로그 다운로드
데이터시트 PMS-50MC Datasheet 다운로드
