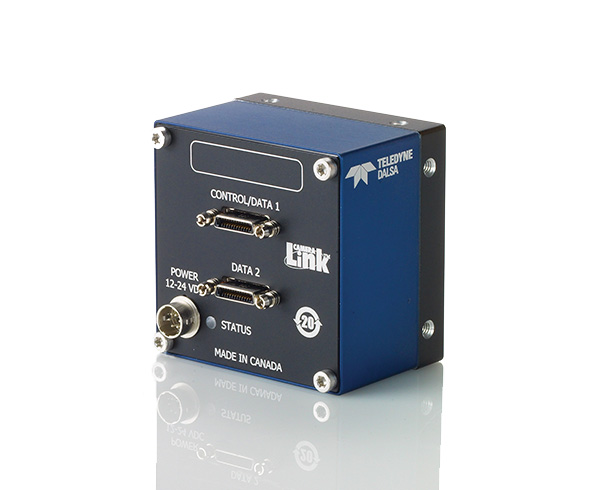

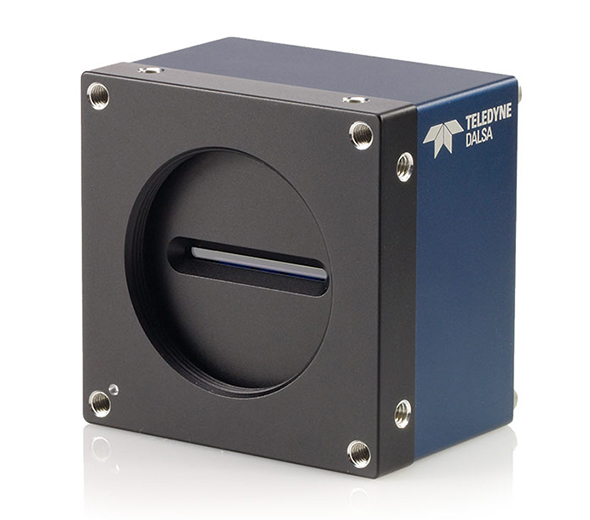

- Piranha4 2k polarization, 70kHzx4, CL
- 편광 방향과 세기를 이용한 새로운 검사 솔루션
제품 단종 안내 드립니다.
마지막 발주: 2019년 12월 31일
마지막 선적: 2020년 3월 31일
A/S 가능: 2020년 9월 30일 까지
최대한 20년 9월 30일까지 수리 서비스 예정이나, warranty 기간내 수리 불가시 credit 후 고객동의에 따라 자체 폐기될 예정입니다.
회수 요청 시 수리되지 않은 상태로 반환되며 credit 발행은 되지 않을 예정입니다.
Industry's first linescan polarization camera: making the invisible visible.
The Piranha4 Polarization™ camera is a breakthrough in the machine vision industry. This high-speed polarization camera features three native polarization states plus an unfiltered channel.
The Piranha4 polarization camera extends detection capability in machine vision and is ideal for detecting stresses, surface roughness, film thickness, alloy composition, and 3D profiles.
The Piranha4 polarization camera extends detection capability in machine vision and is ideal for detecting stresses, surface roughness, film thickness, alloy composition, and 3D profiles.
Feature Highlights
•Three native polarization states plus an unfiltered channel •Line rates up to 70 kHz •Bi-directional •Compact camera body •Sub-pixel spatial correction •Horizontal parallax correction •Multiple regions of interest for calibration and data reduction •8, 10, or 12-bit output •Flat field and lens shading correction •GenICan or ASCII-compliant interfacing
Polarization

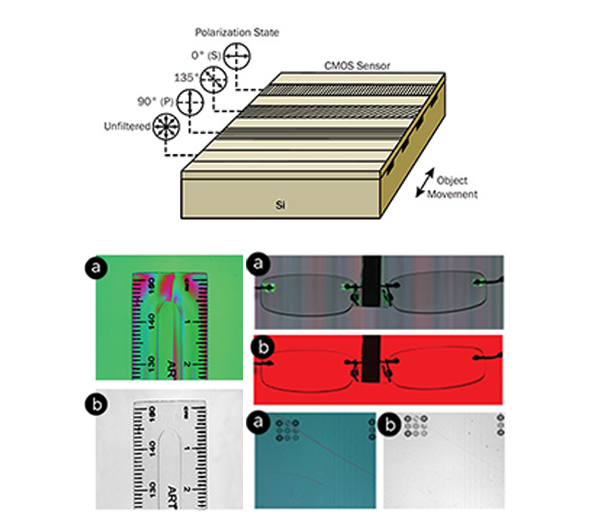

Line scan polarization cameras detect birefringence, stress, surface roughness, and physical properties unseen by conventional imaging. To learn more, read "Focus on Polarization: Quadlinear Line Scan Camera Detects Multiple Polarization States" by Teledyne DALSA, published in Photonics Spectra July 2016.
주요 사양
| Family | Piranha4 |
|---|---|
| Partnumber | P4-CP-02K07Q |
| Number of Pixels | 2048 pixel |
| Number of Lines | 4 |
| Line Rate | 70 kHz |
| Pixel Size | 14.08 μm |
| Interface | Camera Link_Full |
| Chroma | Mono |
| Responsivity | 22(polarized) 60(unfiltered) DN/nJ/cm2(8bit@최소게인) |
| Dynamic Range | 60 dB |
| Sensor size(Image Circle) | 28.84 mm |
| Sensor type | CMOS |
| Mount | M42 x 1/ F |
| Size | 62 x 62 x 48 mm |
| Maker | Teledyne Dalsa |
다운로드
| 구분 | 파일명 | 다운로드 |
|---|---|---|
| 카달로그 | [2024년] 앤비젼 전제품 카달로그 |  |
| 데이터시트 | Piranha4 Polarization 2k, 70kHz Datasheet | |
| 매뉴얼 | Piranha4 / Linea Heat Sink Installation Guide | |
| 매뉴얼 | Piranha4 Polarization 2K Manual | |
| 매뉴얼 | Piranha4 Polarization 2k 70kHz Manual | |
| 3D 도면 | Piranha4 Polarization 2k 70kHz Camera 3D model (STEP) | |
