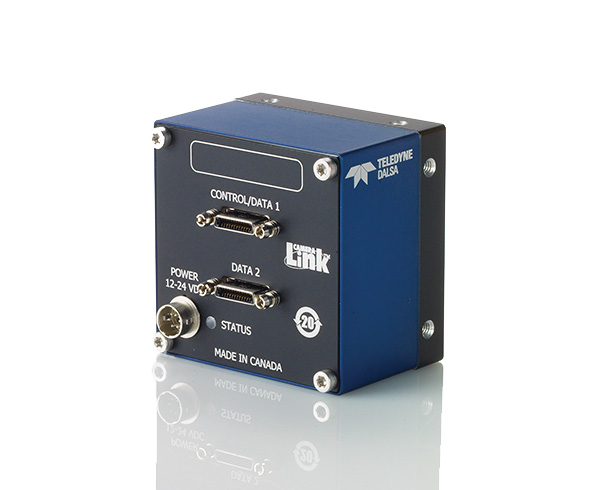

Piranha4 Multispectral RGB+NIR 2k, 70 kHz
고속 및 높은 Responsivity를 지닌 RGB+NIR 멀티 스펙트럼

Expand your inspection spectrum

The new Piranha4 quadlinear RGB + NIR / Mono cameras provide industry leading speeds to meet future requirements of higher throughput in multi-spectral imaging applications.

Based on Teledyne DALSA’s unique CMOS linescan technology, the Piranha4 multi-spectral camera delivers superb color plus near-infrared (NIR) fidelity, spectrally independent outputs, all in a compact footprint and with an easy to use interface. New features include multiple regions of interest for data reduction and regional calibration, sub-pixel spatial correction, white balance and color calibration tools.

»More Information: Read "Multispectral Imaging Extends Vision Technology Capability" by Teledyne DALSA, published in Photonics Spectra February 2015

Spectrally independent channels

Piranha4's wafer level filters provide clear spectral channel separation. The High speed quadlinear CMOS gives you four spectrally independent channels, exposure control per channel, subpixel spatial and parallax correction, and multiple AOI/ROIs for output/calibration.

Why Multispectral?

  • Combine low-light mono performance with all the additional dimensions of color
  • Reveal detail beyond visible light
  • Spectral signatures define materials

Multispectral Imaging

Multispectral imaging takes the detection capability of machine vision beyond just color inspection. To learn more, read "Multispectral Imaging Extends Vision Technology Capability" by Teledyne DALSA, published in Photonics Spectra February 2015

주요 사양

Family Piranha4
Partnumber P4-CC-02K07N
Number of Pixels 2048 pixel
Number of Lines
Line Rate 70 kHz
Pixel Size 14.08 μm
Interface Camera Link_Full
Chroma Color/ NIR
Responsivity 53(R) 46.89(G) 38(B) 30(NIR) DN/nJ/cm2(8bit@최소게인)
Dynamic Range 60 dB
Sensor size(Image Circle) 28.84 mm
Sensor type CMOS
Mount M42 x 1/ F
Size 62 x 62 x 48 mm
Maker Teledyne Dalsa

다운로드

구분 파일명 다운로드
카달로그 2022 앤비젼 솔루션 가이드(전제품 카달로그) 다운로드
데이터시트 Piranha4 Multispectral RGB+NIR 2k, 70 kHz Datasheet 다운로드
매뉴얼 Piranha4 2k RGB + NIR Manual 다운로드
매뉴얼 Piranha4 / Linea Heat Sink Installation Guide 다운로드
3D 도면 Piranha4 Multispectral RGB+NIR 2k 70kHz Camera 3D model (STEP) 다운로드
