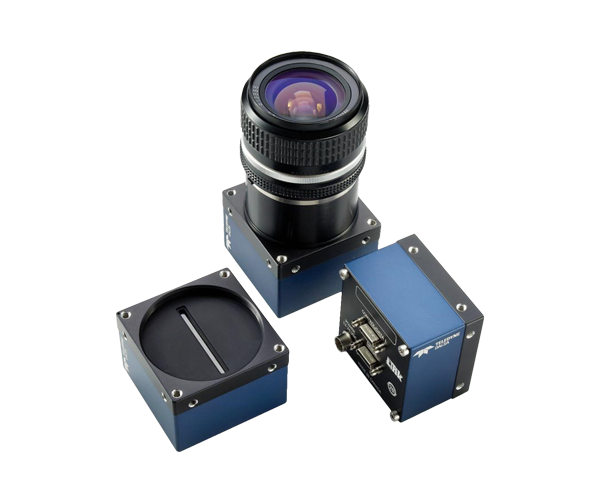

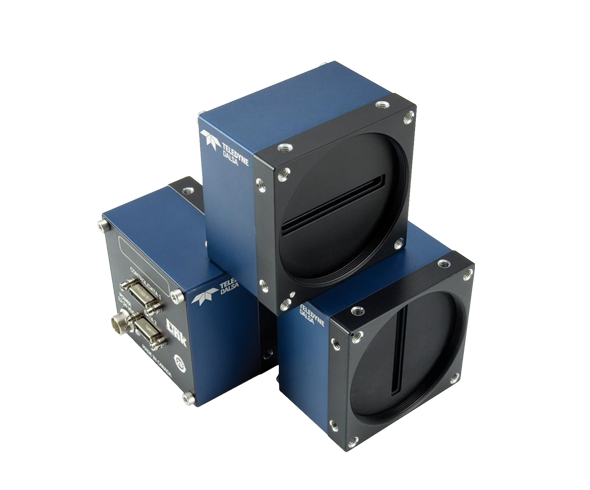

Piranha4 Mono 4k, 100 kHz
최대 100kHz 속도의 CMOS Dual Line scan 카메라

Raising the performance bar once again

Powered by our latest high performance CMOS line scan imagers, the Piranha4 offers resolutions from 2k to 8k pixels in a variety of pixel sizes to let you inspect and detect with unrivalled precision, speed, and responsivity. Our CMOS image sensors' high dynamic range, combined with on-chip ADC for high speed, gives the Piranha4 cameras unprecedented performance.

High Performance Color, Advanced Features, and Programmability

The Piranha4 cameras offer advanced features such as sub-pixel spatial correction, areas of interest (up to 4 at a time) to reduce data processing and simplify cabling, as well as dual-line area mode to double line rate, HDR mode, shading and lens correction. The Piranha4 is built for the real world with features to ease system integration. The advanced GenICam compliant user interface makes it easy to set up and control camera parameters such as exposure control, FFC, white balance, gain, test patterns, diagnostics and more.

Highest line rates in the industry

Our unique CMOS line scan architectures include dual line scan monochrome to deliver a 2x increase in responsivity, as well as bilinear, trilinear, and quadlinear color designs to maximize color performance. Large full-well capacity maximizes signal coverage for bright light, while low read noise ensures superior signal-to-noise at low light.

주요 사양

Family Piranha4
Partnumber P4-CM-04K05D
Number of Pixels 4096 pixel
Number of Lines
Line Rate 100 kHz
Pixel Size 10.56 μm

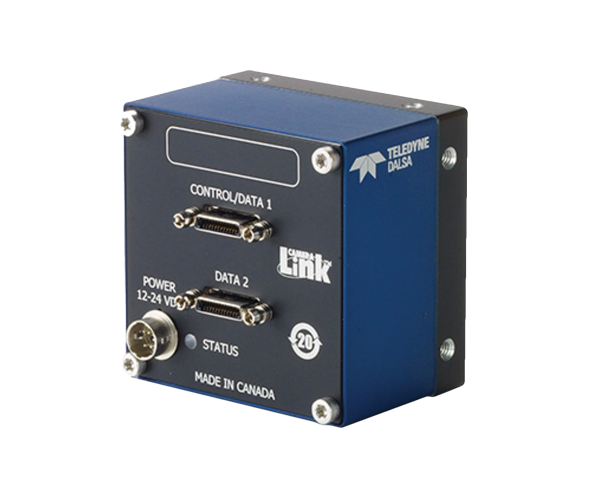

Interface Camera Link_Full
Chroma Mono
Responsivity 87.5 DN/nJ/cm2(8bit@최소게인)
Dynamic Range 60 dB
Sensor size(Image Circle) 43.25 mm
Sensor type CMOS
Mount M58 x 0.75/ F
Size 62 x 62 x 48 mm
Maker Teledyne Dalsa

다운로드

구분 파일명 다운로드
카달로그 2022 앤비젼 솔루션 가이드(전제품 카달로그) 다운로드
데이터시트 Piranha4 4k, 50/100 kHz Datasheet 다운로드
매뉴얼 Piranha4 Mono 2k/4k Manual 다운로드
매뉴얼 Piranha4 / Linea Heat Sink Installation Guide 다운로드
3D 도면 Piranha4 4k User 3D Model 다운로드
3D 도면 Piranha4 4k 50kHz Camera 3D model (STEP) 다운로드
