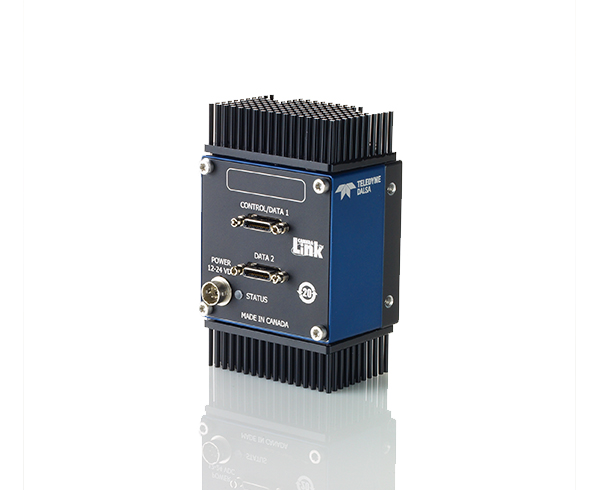

- Piranha4 Color 8k, 50 kHz
- Bilinear 방식으로 우수한 Color imaging을 구현할수 있는 Color Line scan 카메라
Raising the performance bar once again
Powered by our latest high performance CMOS line scan imagers, the Piranha4 offers resolutions from 2k to 8k pixels in a variety of pixel sizes to let you inspect and detect with unrivalled precision, speed, and responsivity. Our CMOS image sensors' high dynamic range, combined with on-chip ADC for high speed, gives the Piranha4 cameras unprecedented performance.
High Performance Color, Advanced Features, and Programmability
The Piranha4 cameras offer advanced features such as sub-pixel spatial correction, areas of interest (up to 4 at a time) to reduce data processing and simplify cabling, as well as dual-line area mode to double line rate, HDR mode, shading and lens correction. The Piranha4 is built for the real world with features to ease system integration. The advanced GenICam compliant user interface makes it easy to set up and control camera parameters such as exposure control, FFC, white balance, gain, test patterns, diagnostics and more.
Highest line rates in the industry
Our unique CMOS line scan architectures include dual line scan monochrome to deliver a 2x increase in responsivity, as well as bilinear, trilinear, and quadlinear color designs to maximize color performance. Large full-well capacity maximizes signal coverage for bright light, while low read noise ensures superior signal-to-noise at low light.
주요 사양
| Family | Piranha4 |
|---|---|
| Partnumber | P4-CC-08k050 |
| Number of Pixels | 8192 pixel |
| Number of Lines | 2 |
| Line Rate | 50 kHz |
| Pixel Size | 7.04 μm |
| Interface | Camera Link_Full |
| Chroma | Color |
| Responsivity | 8.2(R) 7.8(G) 5.3(B) DN/nJ/cm2(8bit@최소게인) |
| Dynamic Range | 62 dB |
| Sensor size(Image Circle) | 57.67 mm |
| Sensor type | CMOS |
| Mount | M72 x 0.75 |
| Size | 80 x 80 x 57 mm |
| Maker | Teledyne Dalsa |
다운로드
| 구분 | 파일명 | 다운로드 |
|---|---|---|
| 카달로그 | [2024년] 앤비젼 전제품 카달로그 |  |
| 데이터시트 | Piranha4 Color 8k, 50 kHz Datasheet | |
| 매뉴얼 | Piranha4 Color 8k Manual | |
| 매뉴얼 | Piranha4 / Linea Heat Sink Installation Guide | |
| 매뉴얼 | Piranha4 Color 8k 50kHz Manual | |
| 3D 도면 | Piranha4 8k 130724 Camera 3D model (STEP) | |
