- SC2, 14.8kHz, CL
- e2v 1k Line scan 카메라
안내: 본 제품은 단종되었습니다.
최대한 A/S 가능일까지 수리 서비스 예정이나, warranty 기간내 수리 불가시 credit 후 고객동의에 따라 자체 폐기될 예정입니다.
회수 요청 시 수리되지 않은 상태로 반환되며 credit 발행은 되지 않을 예정입니다. 자세한 사항은 담당 영업사원에게 문의 바랍니다.

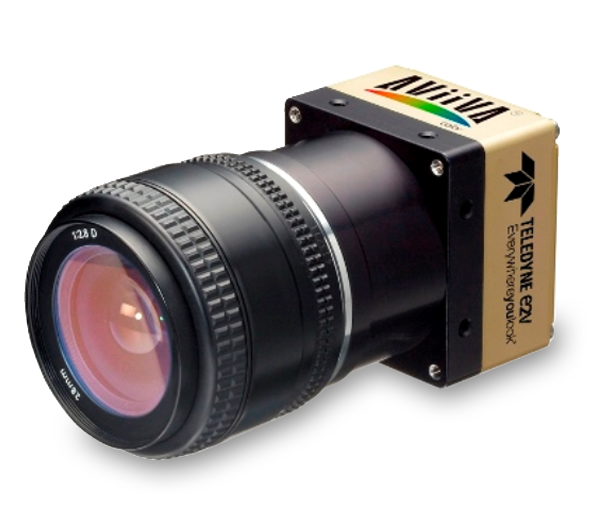

AViiVA SC2 4k colour
This member of the AVIIVA™ range of cameras features a 4K pixel colour sensor with a 10 micron pixel size and an RGB colour pattern (1365 x RGB pattern).
This smarter camera supports both Camera Link, LVDS interface and is operable within a dynamic range of 8, 10 or 12 bits with dedicated electronics. With additional flat-field correction capabilities, contrast expansion functions, white balance and colour space correction, this camera is the perfect alternative for industrial applications requiring low-cost colour capture. Furthermore, one will avoid the usual problems observed with tri-linear sensors on optical alignment and object synchronisation.
This smarter camera supports both Camera Link, LVDS interface and is operable within a dynamic range of 8, 10 or 12 bits with dedicated electronics. With additional flat-field correction capabilities, contrast expansion functions, white balance and colour space correction, this camera is the perfect alternative for industrial applications requiring low-cost colour capture. Furthermore, one will avoid the usual problems observed with tri-linear sensors on optical alignment and object synchronisation.
주요 사양
| Family | SC2 |
|---|---|
| Partnumber | AT71YSC2CL4010-BA1 |
| Number of Pixels | 1365 pixel |
| Number of Lines | 1 |
| Line Rate | 14.8 kHz |
| Pixel Size | 10 μm |
| Interface | CL |
| Spectrum | Color |
| Responsivity | 2.5(R) 1.9(G) 1.3(B) DN/nJ/cm2(8bit@최소게인) |
| Dynamic Range | 64 dB |
| Sensor size(Image Circle) | 13.65 mm |
| Sensor type | CCD |
| Mount | C/ F/ T2/ M42 x 1 |
| Size | |
| Maker | Teledyne e2v |
다운로드
| 구분 | 파일명 | 다운로드 |
|---|---|---|
| 카달로그 | [2025년] 앤비젼 전제품 카달로그 |  |
| 매뉴얼 | AViiVA SC2 CameraLink Manual | |
