Family | Genie Nano |
---|---|
Partnumber | G3-CM12-M5105 |
Resolution | 26.2 Megapixel |
Resolution(H*V) | 5120 x 5120 pixel |
Sensor | OnSemi PYTHON 25K |
Sensor size(Image Circle) | 32.58 mm |
Sensor Format(Inch) | APS-H |
Turbodrive Frame Rate | |
Frame Rate | 32 fps |
Pixel Size | 4.5 μm |

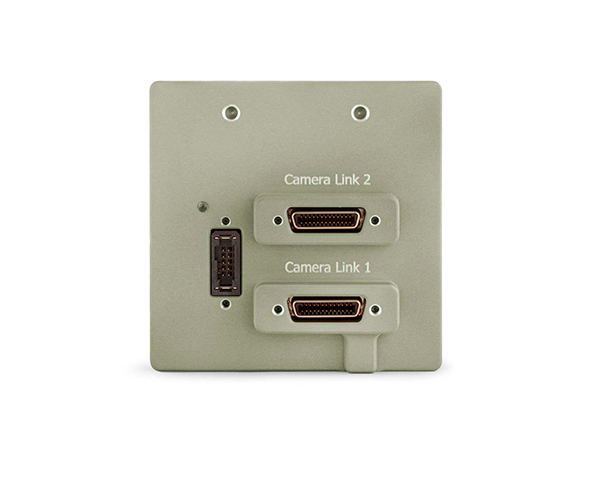

Interface | Camera Link |
Chroma | Mono+NIR |
Readout Method | Global |
Dynamic Range | 55.2 dB |
Sensor type | CMOS |
Mount | M42 |
Size | 59 x 59 x 30 mm |
Maker | Teledyne Dalsa |
구분 | 파일명 | 다운로드 |
---|---|---|
카달로그 | [2024년] 앤비젼 전제품 카달로그 | |
데이터시트 | Genie Nano CL Family Datasheet | |
매뉴얼 | Genie Nano CL Manual | |
3D 도면 | Genie Nano CL with XL Casing 3D Model (STEP) |
