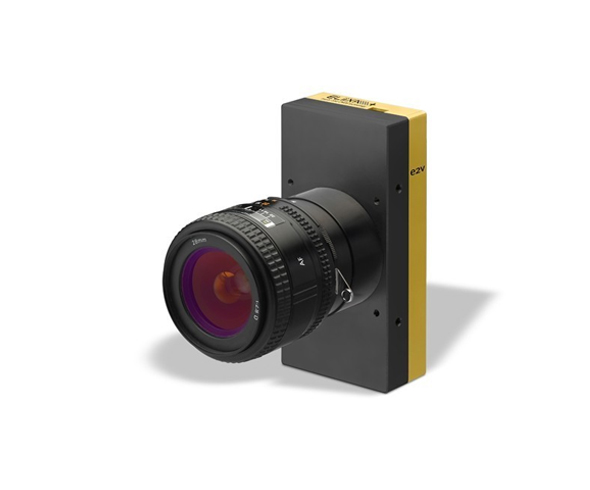

ELiiXA+ Mono 8k, 100kHz, CL (HDR)
오랜기간 시장에서 입증된 고감도 8k Multi Line scan 카메라

The Power and Speed of Vision

The ELiiXA+ family features Teledyne e2v’s recently developed multi-line CMOS technology, providing high line rates and combining high response with extremely low noise levels. This delivers high signal to noise ratio even when short integration times are required or when illumination is limited. Pixels are arranged in two active lines and dual line filter configuration allows the cameras to be operated in several modes.

Typical Applications

  • • Flat panel display inspection
  • • Printed circuit board inspection
  • • Solar cell inspection
  • • High quality raw material
  • • High resolution document scanning
  • • Surface inspection
  • • Printing inspection
  • • Electronic inspection
  • • High quality raw materia
  • • High quality food and pharmaceutical inspection
  • • Rail inspection
  • • Industrial inspection
  • • And more!

주요 사양

Family ELiiXA+
Partnumber EV71YC4MCL8005-BH1
Number of Pixels 8192 pixel
Number of Lines
Line Rate 100 kHz
Pixel Size 5 μm
Interface Camera Link
Chroma Mono
Responsivity 28 DN/nJ/cm2(8bit@최소게인)
Dynamic Range 73 dB
Sensor size(Image Circle) 40.96 mm
Sensor type CMOS
Mount F/ T2/ M42 x 1
Size
Maker Teledyne Dalsa

다운로드

구분 파일명 다운로드
카달로그 [2024년] 앤비젼 전제품 카달로그 다운로드
데이터시트 ELiiXA+ Mono 16k/8k CL, CXP Datasheet 다운로드
데이터시트 ELiiXA+ Mono 8k/4k CL Datasheet 다운로드
매뉴얼 ELiiXA+ Mono 4k/8k CameraLink Manual 다운로드
3D 도면 ELiiXA+ 8k/4k CL Camera 3D model (STEP) 다운로드
