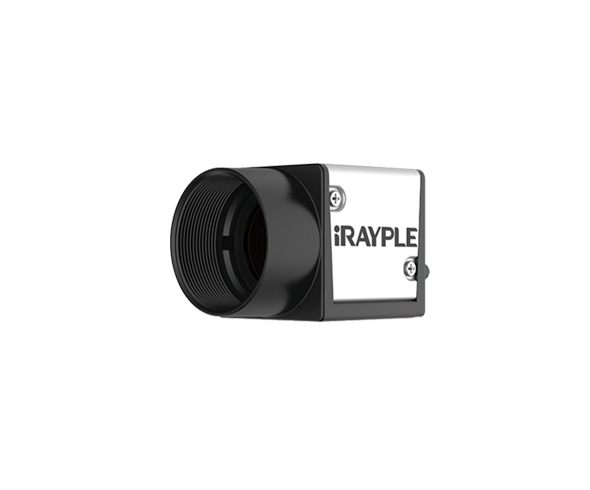

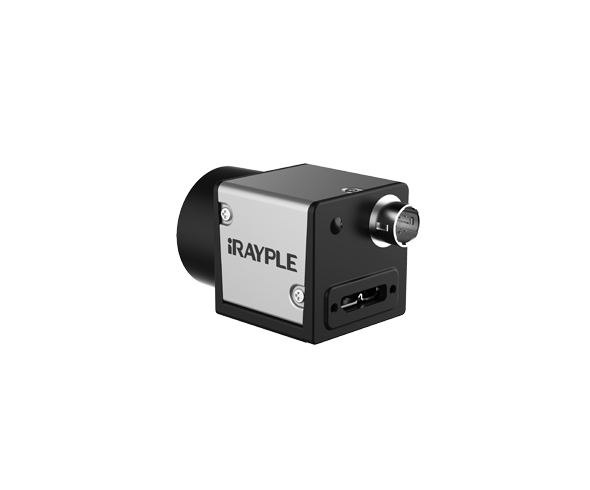

- HuaRay iRAYPLE 0.3M Color, USB 3.0
- PYTHON 300 센서가 적용된 USB타입의 Area scan 컬러 카메라
iRAYPLE 카메라를
선택해야만하는 이유
USB 3.0 인터페이스 편의성에 안정적인 성능을 더해
기본에 충실한 Huaray 카메라를 소개합니다.
Technical features
- USB3.0 interface, 5Gbps theoretical transfer bandwidth, power supply via USB interface
- Compact size of 29mmx29mmx29mm
- 128MB on-board cache for data transmission or image resend
- Support Software Trigger/Hardware Trigger/Free Run Mode
- Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast etc.
- Support multiple image data formats output/ROI/Mirror, etc.
- Compatible with USB3.0 Vision protocol and GenICam standard
- Conform to CE, FCC, RoHS
Application Industry
- Defect inspection
- SMT
- Vision localization
- Dimension measurement
- Barcode reading
- VR/AR
- Logistic Industry
주요 사양
| Family | iRAYPLE |
|---|---|
| Partnumber | A5031CU815E |
| Resolution | 0.3 Megapixel |
| Resolution(H*V) | 640 x 480 pixel |
| Sensor | OnSemi PYTHON 300 |
| Sensor size(Image Circle) | 3.84 mm |
| Sensor Format(Inch) | 1/4" |
| Turbodrive Frame Rate | |
| Frame Rate | 815 fps |
| Pixel Size | 4.8 μm |
| Interface | USB 3.0 |
| Spectrum | Color |
| Readout Method | Global |
| Dynamic Range | 60 dB |
| Sensor type | CMOS |
| Mount | C |

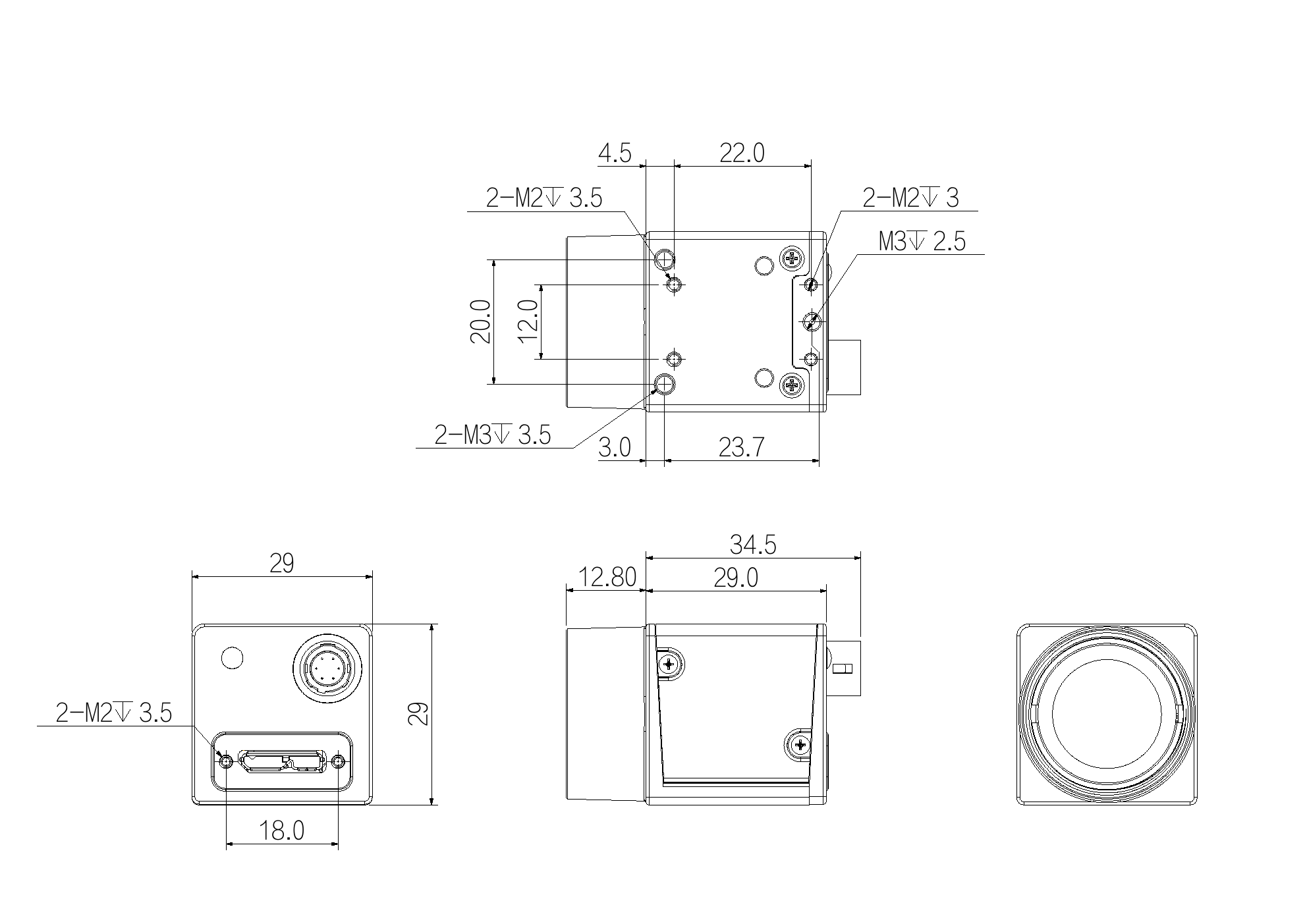

| Size | 29 x 29 x 29 mm |
| Maker | Huaray |
다운로드
| 구분 | 파일명 | 다운로드 |
|---|---|---|
| 카달로그 | [2025년] 앤비젼 전제품 카달로그 |  |
| 데이터시트 | [2023년] HuaRay iRAYPLE 0.3M Color, USB Datasheet | |
| 매뉴얼 | [2022년] HuaRay iRAYPLE USB 3.0 Area Scan Camera Manual | |
| 3D 도면 | [2023년] Huaray iRAYPLE 29x29x29(1000) USB 3D Model | |
