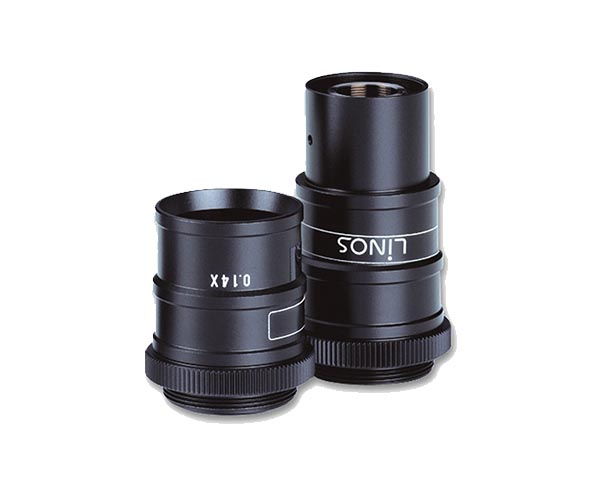

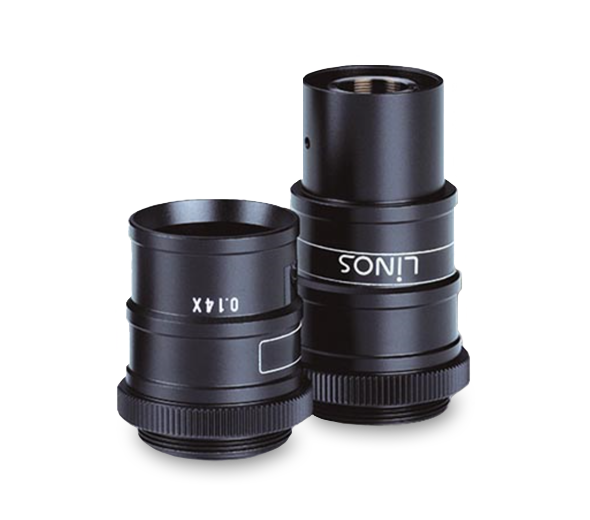

- Macro CCD 렌즈 2x
- 1/2“ 2/3“ CMount CCD 카메라를 위한 설계
Macro Lenses developed by Rodenstock Präzisionsoptik for CCD Cameras, feature the highest resolution, excellent contrast, color neutrality and are virtually free of distortions. A large selection of Macro Lenses with magnification ratios from 1:3 to 4:1 is available which can be supplied with various fixed diaphragm aperture settings.
Key Performance
- High optical performance
- Huge range of magnifications available
- Designed for 1/2" and 2/3" sensors
- Image circle: 11 mm
앤비젼 C-mount 광학계산기
간단한 입력을 통해 C-mount 렌즈 관련
유용한 정보를 얻을 수 있습니다. (로그인 후 사용가능)
1) Focal Length
2) Working Distance
3) FOV
주요 사양
| Family | Macro CCD |
|---|---|
| Partnumber | 0009-193-000-40 |
| Focal length | 26 mm |
| Image circle | 11 mm |
| Sensor Format(Inch) | 2/3'' |
| F/# | 4.4 |
| Iris Option | Fixed |
| Mount | C |
| MOD | 75 mm |
| Distortion | None % |
| Magnification range | None x |
| Magnification | 2 x |
| Wavelength | 400 ~ 750 |
| Type | Fixed focal length |
| Maker | Excelitas |
| Resolution | None |
다운로드
| 구분 | 파일명 | 다운로드 |
|---|---|---|
| 카달로그 | [2025년] 앤비젼 전제품 카달로그 |  |
| 데이터시트 | Macro CCD 렌즈 2X Datasheet | |
| 3D 도면 | Macro-CCD-lens 2X lens 3D Model (STEP) | |
