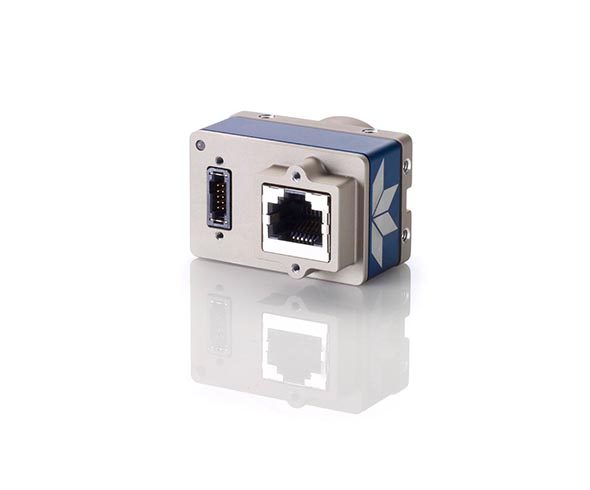

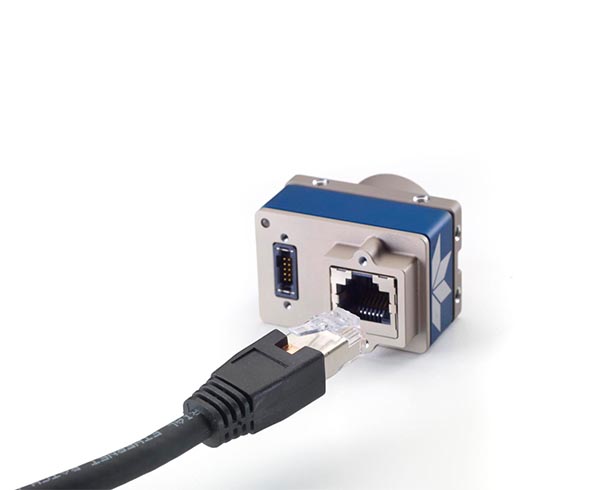

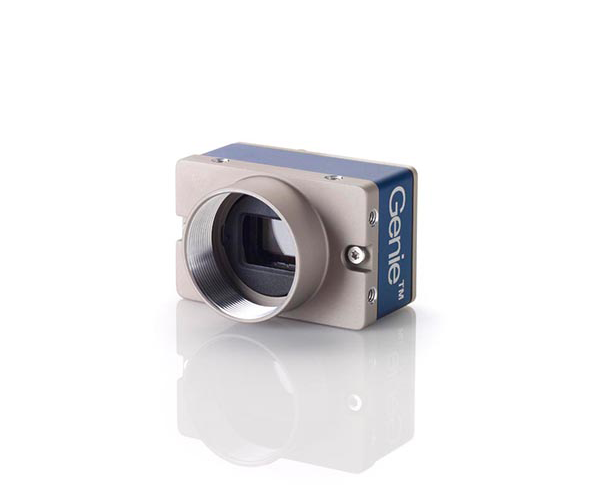

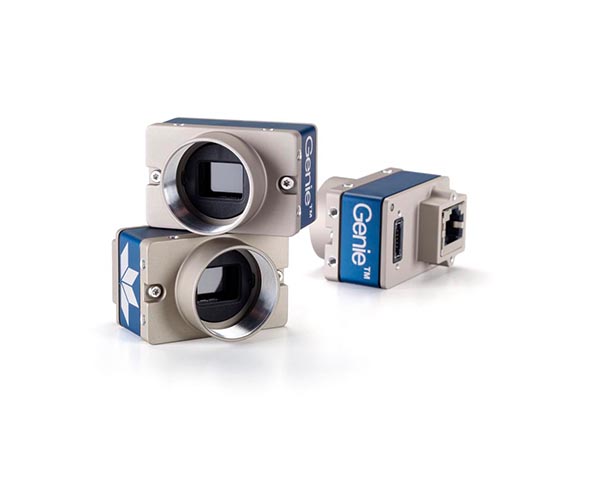

- Genie Nano 0.3M Mono, GigE
- GigE 인터페이스의 한계를 넘는 속도와 다양한 편의 기능을 제공하는 합리적인 가격의 Area scan 카메라
Smaller, faster, stronger, cheaper.
Better in every way that matters.
Introducing Genie Nano, a CMOS area scan camera that redefines low cost performance. Genie Nano starts with industry leading CMOS sensors and adds proprietary camera technology for breakthrough speed, a robust build quality for wide operating temperature, a three-year warranty and an unmatched feature set—all at an incredible price.
Latest generation CMOS technology
Genie Nano is designed to use a range of leading CMOS image sensors, including models from Sony's Pregius and ON Semiconductor's Python lines. With resolutions from VGA to 25 megapixels, the Nano delivers high speed, low noise, and global shutters.
주요 사양
| Family | Genie Nano |
|---|---|
| Partnumber | G3-GM10-M0640 |
| Resolution | 0.3 Megapixel |
| Resolution(H*V) | 672 x 512 pixel |
| Sensor | OnSemi PYTHON 300 P1 |
| Sensor size(Image Circle) | 4.06 mm |
| Sensor Format(Inch) | 1/4" |
| Turbodrive Frame Rate | 720 fps |
| Frame Rate | 345 fps |
| Pixel Size | 4.8 μm |
| Interface | GigE |
| Spectrum | Mono |
| Readout Method | Global |
| Dynamic Range | 61.56 dB |
| Sensor type | CMOS |
| Mount | C / CS |
| Size | 44 x 29 x 21 mm |
| Maker | Teledyne Dalsa |
다운로드
| 구분 | 파일명 | 다운로드 |
|---|---|---|
| 카달로그 | [2025년] 앤비젼 전제품 카달로그 |  |
| 데이터시트 | Genie Nano-M640 Datasheet (한글) | |
| 데이터시트 | [2020년] Genie Nano GigE Family Datasheet | |
| 매뉴얼 | [2021년] Genie Nano 1GigE Manual | |
| 3D 도면 | Genie Nano 3D model (STEP) | |
| 기타 | Genie Nano Example files | |
