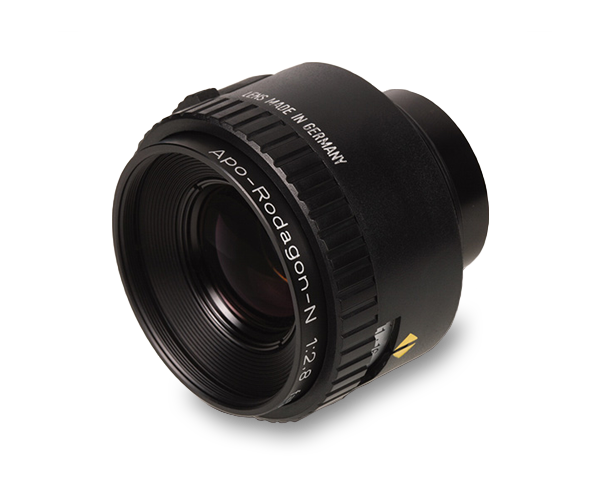

Apo-Rodagon N 4/105
Suitable for line-scan cameras and large imaging sensors

Apo- Rodagon-N

The Linos measuring lenses developed by Qioptiq feature the highest resolution, excellent contrast, minimum distortion and color neutrality.

Lenses produce crisp, sharp images to the extreme edges of the object.

Apochromatically corrected lens designed to meet the highest requirements in an especially broad magnification range.

Key features

- Suitable for line-scan cameras and large imaging sensors

- Large image circle up to 100 mm

- High numerical aperture

- Adapter available for all common camera inter faces

- Focal length: 50 ... 105 mm

- Magnification range: -0.05 ... -0.5

- Spectral range: 400-750 nm

- Iris diaphragm: manual, click-stop or continuous with set screw

- Mount: M39x1/26" (Leica)

- Filter thread: M40.5x0.5

- Wide range of mechanical accessories

Specifications

Family Apo-Rodagon N
Partnumber 0703-096-000-40
Magnification range 0.06 ~ 0.5 x
Magnification 0.17 x
Image circle 100 mm
Focal length 105 mm
F/#
Wavelength 400 ~ 750
Type Fixed focal length
Mount M39
Maker Qioptiq
