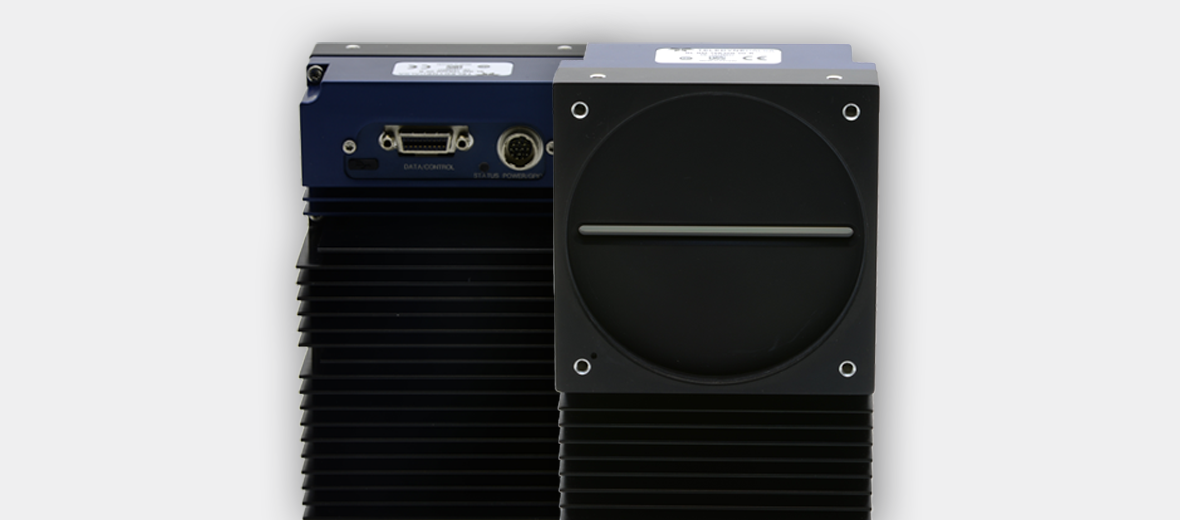

- Linea HS Color 16k, 300kHz, CLHS CX4
- Advanced High-Speed, high-Sensitivity TDI Camera
CHARGE-DOMAIN CMOS TDI LINE SCAN
UNPARALLELED PERFORMANCE
Building on Teledyne DALSA’s heritage in CCD TDI,
the new CMOS TDI technology in our Linea HS is the most advanced in the marketplace.
the new CMOS TDI technology in our Linea HS is the most advanced in the marketplace.
Packed with powerful features
The Linea HS cameras deliver the highest performance available, with unique features that significantly improve detectability for many demanding applications.
- HDR Imaging
- Sychronized IO to control external lighting
from the camera
- Fiber optic cables up to 100 m
Equipped for the Future

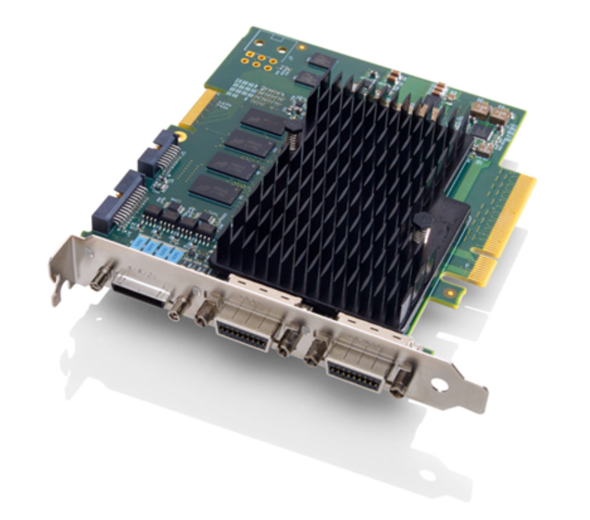

The Linea HS brings your imaging system the speed and power of the PCIe Gen 3 platform when paired with Xtium2.Leveraging the high efficiency of the CameraLink HS interface's X-protocol, the Xtium2 CLHS PX8 supports Active Optical Cable (AOC) and industry standard CX4 cables with up to 7-CLHS lanes, each operating at 10.3 Gbits/s, to acquire images at up to 8.4 GBytes/s.
With slim, robust, and cost effective fiber optic cabling, Linea HS and Xtium2 allow cable lengths beyond 100 meters to enable the newest and most demanding vision applications.
With slim, robust, and cost effective fiber optic cabling, Linea HS and Xtium2 allow cable lengths beyond 100 meters to enable the newest and most demanding vision applications.
Typical Applications
The Linea HS enables high speed and high sensitivity imaging in light starved conditions like these
If you need maximum throughput in the toughest conditions, you need Linea HS.
- FPD Inspection
- PCB Inspection
- Wafer Inspection
- Gene Sequencing
- Digital Pathology
If you need maximum throughput in the toughest conditions, you need Linea HS.
Specifications
| Family | Linea HS |
|---|---|
| Partnumber | HL-HC-16K10T-00-R |
| Number of Pixels | 16384 pixels |
| Number of Lines | 256 |
| Line Rate | 300 kHz |
| Pixel Size | 5 µm |
| Interface | CLHS CX4 |
| Spectrum | Color |
| Responsivity | 170(B) 140(G) 260(R) DN/nJ/cm² |
| Dynamic Range | 68 dB |
| Sensor size(Image Circle) | 81.92 mm |
| Sensor type | CMOS |
| Mount | M90 x 1 |
| Size | 97 x 140.5 x 78.6 mm |
| Maker | Teledyne Dalsa |
