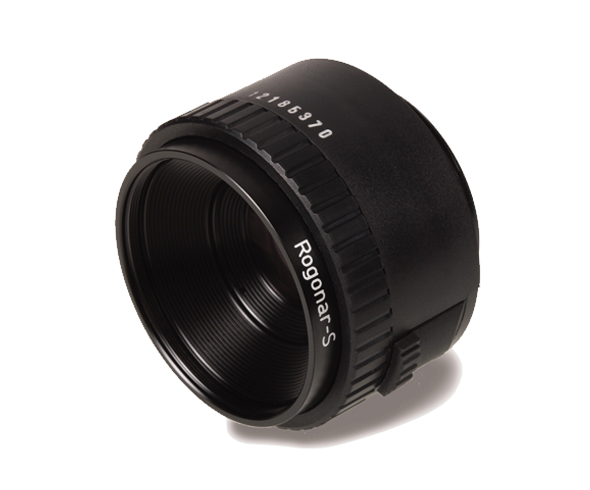

Rogonar-S

The Linos measuring lenses developed by Qioptiq feature the highest resolution, excellent contrast, minimum distortion and color neutrality. They sharply reproduce images all the way to the very edges of the object.

Inexpensive lens with good imaging performance. Optimal price / performance ratio

Key features

- Suitable for line-scan cameras and large ima ging sensors

- Large image circle up to 82 mm

- High numerical aperture

- dapter available for all common camera interfaces

- Focal length: 50 ... 90 mm

- Magnification range: -0.08 ... -0.5

- Spectral range: 400-750 nm

- Iris diaphragm: manual, click-stop

- Mount: M39x1/26" (Leica)

- Filter thread: M40.5x0.5

Specifications

Family	Rogonar-S
Partnumber	0801-398-000-41
Magnification range	0.125 ~ 0.5 x
Magnification	0.25 x
Image circle	84 mm
Focal length	90.1 mm
F/#	4.5
Wavelength	400 ~ 750
Type	Fixed focal length
Mount	M39
Maker	Excelitas
