- LCI401
- Captures 3D+2D data with Max. 16kHz
Line Confocal Imaging

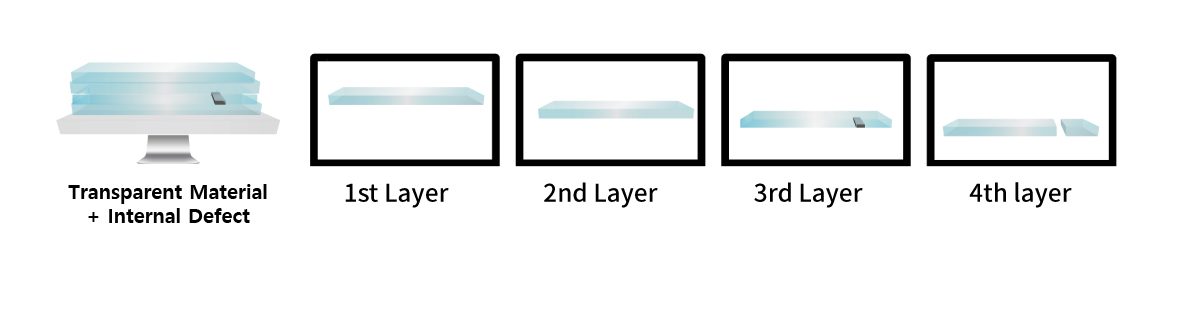

All FocalSpec Line Confocal Sensor models can be used to inspect a variety of challenging surface types—including curved edge, transparent multi-layered, and highly-reflective.
Multipurpose Scanning. High-Precision Measurement.
Choose FocalSpec LCI401, LCI1201, or LCI1600 Standard 3D Line Confocal Sensors for at-line and offline applications requiring high-precision measurement capabilities without the need for higher speeds..
FocalSpec LCI401
The LCI401 Line Confocal Sensor is designed for applications requiring extreme dimensional accuracy, such as measuring the burr height of batteries.
Specifications
| Family | |
|---|---|
| Partnumber | LCI401 |
| Technique | Chromatic confocal |
| Points per profile | 4096 |
| Max.Measurement Speed | 5 kHz |
| Min.FOV | |
| Max.FOV | |
| Max.Optical Resolution | |
| Repeatability | 0.11 μm |
| Linearity | |
| Measuring Range | |
| Reference Distance | 8.00 mm |
| Wavelength | VIS |
| Interface | |
| Maker | LMI Technologies |
