Greater functionality. Same small size

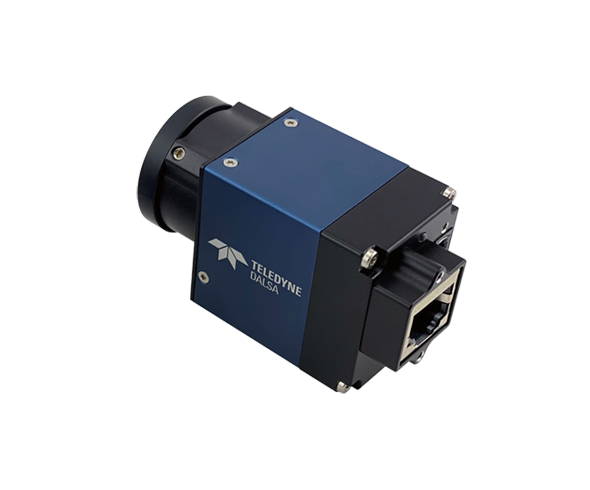

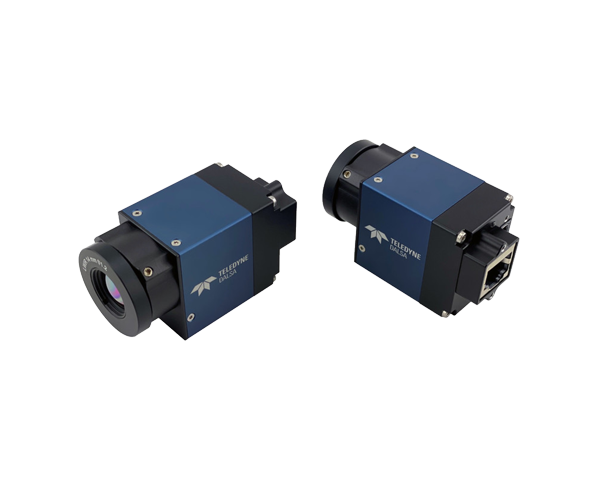

The Calibir uncooled Long Wave Infrared camera platform offers outstanding shutterless imaging performance and is optimized for Size, Weight and Power (SWAP). The Calibir DXM640 series features both shutter and shutterless operation and rapid image output on power up while delivering uniform response over the entire operating temperature range, making it ideal for thermal imaging applications requiring uninterrupted image acquisition. ULIS’s gen2 sensor offers an improved NETD and the updated calibration include customized gain correction on a per lens basis to offer even better image performances and response uniformity.

Packed with powerful features

- 640x480 VGA resolution

- 17 μm square pixels

- 29mm x 37mm x 59.53mm

- Gigabit Ethernet (GigE)

- General purpose opto-coupled input/output

- (external trigger,user, count, or timer driven triggering)

- Flexible general purpose Counter and Timer functions

- for internal/external controls

- Defective Pixel replacement

- Adaptive Image Enhancement

- IEEE1588-2008 Precision Time Protocol

- synchronization capable

- Built-in Pseudo-color for enhanced visualization

Specifications

Spectrum	LWIR
Type
Family	Calibir DX
Partnumber	IR-DMVG-4101000
Resolution	0.3 Megapixel
Resolution(H*V)	640 x 480
Sensor size (Image Circle)	13.6 mm
Frame/Line Rate	30 Hz
Pixel Size	17 μm
Interface	GigE
Spectral Response	8 ~ 14μm
NETD	<50 mK
Sensor type	a-Si microbolometer
Operating Temp	-20 ~ 50 °C
Temp. Accuracy	Non-radiometric
Mount	M25
Lens Focal Length	7.5
Lens F/#	1.2
HFOV	90.8 ⁰
Size	29 x 37 x 59 mm
Mass	66.7
Responsivity
Full Well
Dynamic Range
Quantum Efficiency
Maker	Teledyne Dalsa
