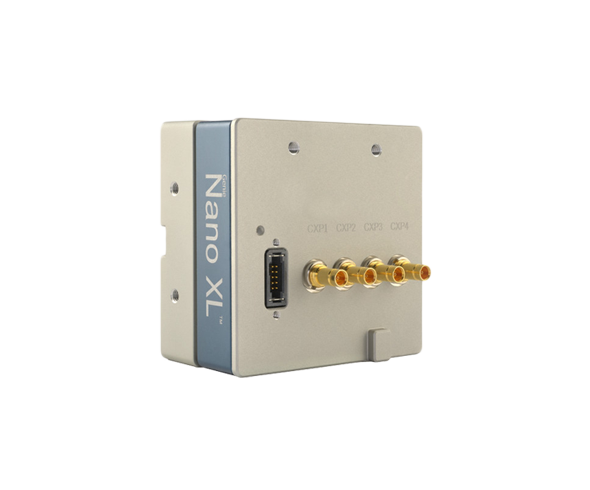

- Genie Nano 37M Color, CXP
- MORE PIXELS, MORE PERFORMANCE, SAME NANO QUALITY
Speed & Quality
Introducing Genie Nano-CXP, a camera designed for full-throttle performance. Genie Nano-CXP builds on Nano's proven, industry leading reputation and leverages a CoaXPress 6Gbps interface to deliver the maximum throughput from leading edge high resolution CMOS image sensors.
In resolutions from 16 to 67 megapixels, Genie Nano-CXP ensures robust build quality, wide operating temperature, and an unmatched feature set—all at an incredible price.
In resolutions from 16 to 67 megapixels, Genie Nano-CXP ensures robust build quality, wide operating temperature, and an unmatched feature set—all at an incredible price.
Typical Applications
· Semiconductor wafer inspection
· Surface and bump inspection
· Electronics manufacturing
· 3D solder paste inspection
· Package and bump inspection
· Automated Optical Inspection (AOI)
· Solar panel inspection
· General machine vision
· And more!
Ultimate performance with Xtium-CXP PX8
Unleash the maximum from Genie Nano-CXP cameras with our Xtium™-CXP frame grabber.
Supporting four input channels of up to 6.25 Gb/s, the Xtium-CXP takes full advantage of PCIe Gen 2.0 platform to deliver host transfer bandwidth up to 3.4 GB/s using PCIe x8 slots
By enabling maximum sustained throughput and ready-to-use image data, the Xtium series minimizes CPU usage and improves processing times for the host applications.
Supporting four input channels of up to 6.25 Gb/s, the Xtium-CXP takes full advantage of PCIe Gen 2.0 platform to deliver host transfer bandwidth up to 3.4 GB/s using PCIe x8 slots
By enabling maximum sustained throughput and ready-to-use image data, the Xtium series minimizes CPU usage and improves processing times for the host applications.
Specifications
| Family | Genie Nano |
|---|---|
| Partnumber | G3-XC01-C6205 |
| Resolution | 37.7 Megapixel |
| Resolution(H*V) | 6144 x 6144 pixel |
| Sensor | Teledyne E2V Emerald 36M Color |
| Sensor size(Image Circle) | 21.72 mm |
| Sensor Format(Inch) | 4/3" |
| Turbodrive Frame Rate | |
| Frame Rate | 43 fps |
| Pixel Size | 2.5 μm |
| Interface | CoaXPress |
| Chroma | Color |
| Readout Method | Global |
| Dynamic Range | 66 dB |
| Sensor type | CMOS |
| Mount | M42 |
| Size | 32 x 59 x 59 mm |
| Maker | Teledyne Dalsa |
