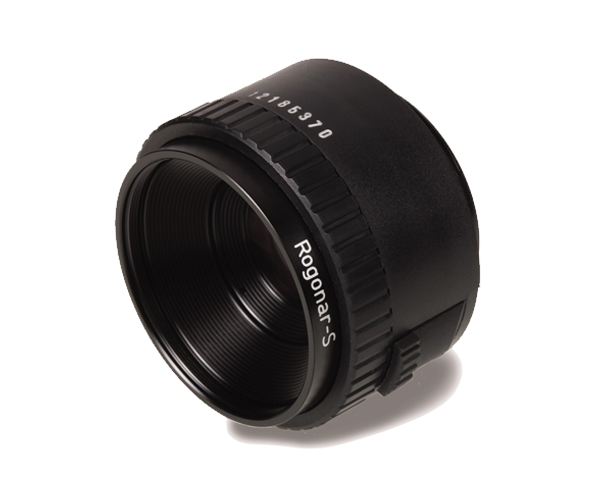

Rogonar-S 4.5/60
Inexpensive lens with good imaging performance

Rogonar-S

The Linos measuring lenses developed by Qioptiq feature the highest resolution, excellent contrast, minimum distortion and color neutrality. They sharply reproduce images all the way to the very edges of the object.

Inexpensive lens with good imaging performance. Optimal price / performance ratio

Key features

- Suitable for line-scan cameras and large ima ging sensors

- Large image circle up to 82 mm

- High numerical aperture

- dapter available for all common camera interfaces

- Focal length: 50 ... 90 mm

- Magnification range: -0.08 ... -0.5

- Spectral range: 400-750 nm

- Iris diaphragm: manual, click-stop

- Mount: M39x1/26" (Leica)

- Filter thread: M40.5x0.5

Specifications

Family Rogonar-S
Partnumber 0801-324-000-40
Magnification range 0.1 ~ 0.5 x
Magnification 0.25 x
Image circle 56 mm
Focal length 60.3 mm
F/# 4.5
Wavelength 400 ~ 750
Type Fixed focal length
Mount M39
Maker Qioptiq
